LuxDrive LED 1.5W Warm White Light Bulbs, PWM Dimmable

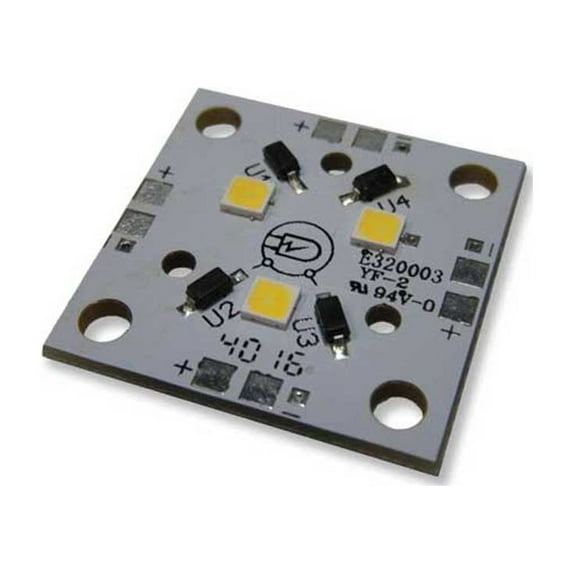

The LUXdrive DynaSquare is a discrete, constant voltage 12V LED light engine (No CC Driver Required!). The 1” square PCB houses 3 Nichia 757 high performance, mid-power LEDs along with on-board drivers. The on-board driver circuitry makes it possible for the DynaSquare to accept constant voltage DC input from 11-15VDC. The DynaSquare is PWM dimmable, adding to the flexibility of the unit. The board and 757 LEDs can be used with Carclo 3-up Optics. The DynaSquare runs at about 1.5 Watts and outputs up to 150 Lumens! It's perfect for lamp and luminaire applications and can also be extremely useful in panel and display lighting. The DynaSquare PCB board has convenient .125" diameter mounting holes, that are .125" from each corner. We recommend 4-40 machine mounting screws and the washers should not exceed .25" in diameter. The board design makes it possible to connect multiple boards together (as shown below). The solder connections on each of the four sides make for plenty of different wiring setups. Please contact us at LEDSupply before connecting more than 20 DynaSquares together at one time. The LEDs can also be wired in parallel off of the same power supply. Just make sure your power supply has sufficient wattage (1.5 Watts for every DynaSquare).
