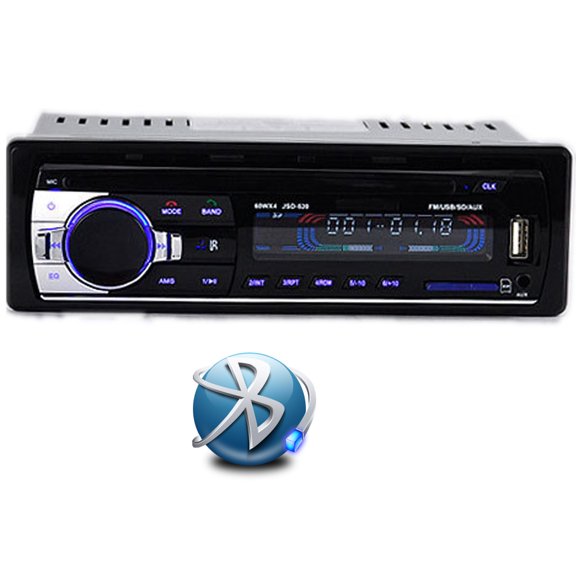

Single Din Blue tooth Car Radio Audio 24V USB/SD/MP3 Player In Dash Aux Input SD USB MP3 FM Radio Player JSD-520

24v Blue tooth Car Audio Single Din 1 DIN In Dash Aux Input SD USB MP3 FM Radio Player Receiver Hands-Free with Remote Control JSD-520

Specification:
Model: JSD-520 Blue tooth Type
Panel Size: 188 x 150 x 58mm/74 x 59 x 23inches (Wide*Deep*Height)
Installation Dimension: 178 x 150 x 50mm /70x 59x 20inches (Wide*Deep*Height)
Quantity: 1 piece
Power Supply: 24V
Max. Power Output: 60W×4
FM Frequency Range: 87.5-108.0MHZ
Back Light: Blue
English Manual: Yes

Features:
Elegant carry case design, with clear LCD display, LED security light
Auto memory preset store
Remote Control
Mounting Accessories included

Blue tooth Connecting Method:
Turn on your phone Blue tooth function, search on and connect the "CAR/btmp3" item,
Enter password "0000" (if needed)
Press MODE button to the Blue tooth function
then the MP3 Player is now available for use.
WIRING GUIDE:
-Testing Methods:
1. Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode.
2. Connect one piece of the wires to the horn, do not touch the wires each other.

-Installing Methods:
please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine.
1. The YELLOW wire connect to the anode of accumulator, while the BLACK cathode.
2. The RED wire connect to the car key ignition.
3. If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire.
4. Otherwise wrap the BLUE wire with adhesive plaster for other car models.
5. Horn has positive and negative electrode, connect them according to the methods.

Package Included:
1 x Packing Box
1 x Blue tooth MP3 Player
1 x Remote Control
1 x Cable
1 x English Manual

Note:
1. If this stereo no power after installation, try to connect red and yellow wire together to the positive.
2. 2 Antenna Jack will not affect the performance of product.
3. Please check the size measurement chart carefully before making a payment.
4. Please allow 0.1-0.5cm difference due to manual measurement.
5. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
