Hero image 0 of Qty 2 XCA31-1400 AGM Marmon Truck Group 31 Gas Diesel Semi Truck Bus repl Battery, 0 of 1

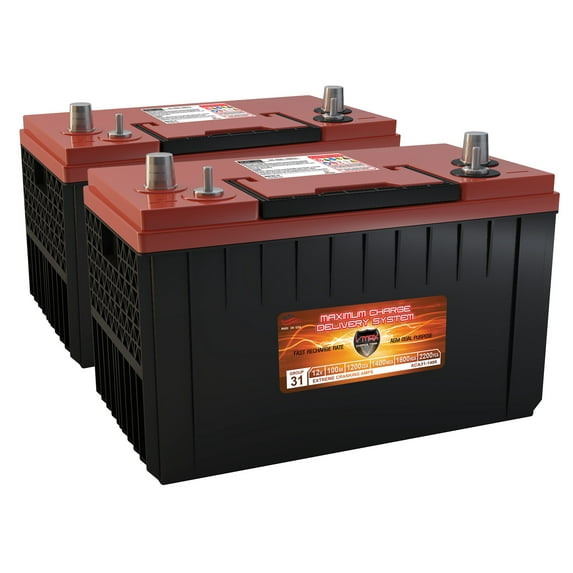

Qty 2 XCA31-1400 AGM Marmon Truck Group 31 Gas Diesel Semi Truck Bus repl Battery

(No ratings yet)

Key item features

Powerful Performance: This 12V AGM battery offers a 100AH capacity, 2200A PHCA, 1400A MCA, and 1200A CCA, providing superior cranking amps for gas and diesel semi-trucks and buses.
Robust Construction: Featuring Thin Plate, 99.99% Pure Lead Technology, it boasts tin-plated brass terminals and a sealed, maintenance-free design for durability.
Optimal Dimensions: The battery measures 13"w x 6.8"d x 9.39"h (including terminals) and weighs 75LB, with SAE and stud terminal posts.
Efficient Charging: Recommended charging current is 20A, with a voltage range of 14.4-14.9V, and it can be fully recharged within 4 hours using high current chargers.
Extreme Durability: Designed for a wide operating temperature range (-40F to 180F), it offers superior vibration resistance and a lower self-discharge rate.
Versatile Application: This dual-purpose starting/deep cycle battery is suitable for marine, truck, farm, and heavy-duty applications, with flexible mounting options.

Generated by AI

Specs

Cold crank amp
1200
Bci group number
31
Battery post location
Top Post
Features
Maintenance Free Batteries
Brand
VMAXTANKS
Vehicle fitment type
Specific

Current price is $949.97

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

VMAX XCA series utilizes state of the art technology in manufacturing Thin Plate, 99.99% Pure Lead Technology to deliver this tank with Superior Cranking Amps with adequate deep cycle capabilities. Main Features: Superior Cranking Amps Capabilities; 30%-50% higher than conventional batteries. Tin plated brass terminals Maintenance free, non spill-able, non hazardous. Lower Internal Resistance. Over 50% Lower Self Discharge Rate. Widest SLA Operating Temperature Range, -40F TO 180F. Three to Four times Longer Storage Capabilities (12-24 months compared to 4-6 months). Superior Vibration Resistance, Cycle Life and Charge Acceptance. Flexible mounting. Can be mounted in any position other than inverted. SLA batteries Fastest Recharge Time; can be fully recharged within 4 hours using high current chargers of up to 2C (200Amps for this model). XCA31-1400 VMAX XTREME CRANKING AMPS SERIES Dual Purpose Starting / Deep Cycle Battery Marine, Truck, Farm and Heavy Duty Applications. Sealed, maintenance free AGM with maximum Cranking amps along with deep cycle capabilities are achieved by the unique Pure Lead Thin Plate Technology utilized in the manufacture of this series of XCA batteries. Recommended Charging Options: AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used. Vehicle Alternator: 14.5V-14.9V. RV Converter: 14V-15V. Operating Temperature Range: Discharge: -40~180F Charge: 14~140F Storage: -4~140F Temperature Compensation: Cycle use: -30mV/C Standby use: -20mV/C. BCI Group Codes*: Matching Termination: 31 (+ on L.H.S. & - on R.H.S) * Matching is based on closest dimensional specifications. Differences in hold downs and termination may require some accommodations and/or the extension of one or both vehicle's battery cables.

Nominal Voltage: 12V, 20Hr Capacity: 100AH, RC (min): 205, PHCA:***2200A, MCA: 1400A, CCA: 1200A
Terminal Posts: SAE AND 3/8" pos, 5/16" neg. Studs, Dimensions: 13"w x 6.8"d x 9.39" th**), Weight: 75LB
Minimum Charging Current: 20A, Charging Voltage: 14.4-14.9V, Float Voltage: 13.5V-13.8V
Torque Specs in-Lbs / (Nm max): 150-220 / (16.9-22.6)
Studs Internal Resistance: 2.2 m ohm
Short Circuit Current: 5000 Amps
Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger. **Total Height including terminal post.*** 5sec Pulse Hot Cranking Amps.
