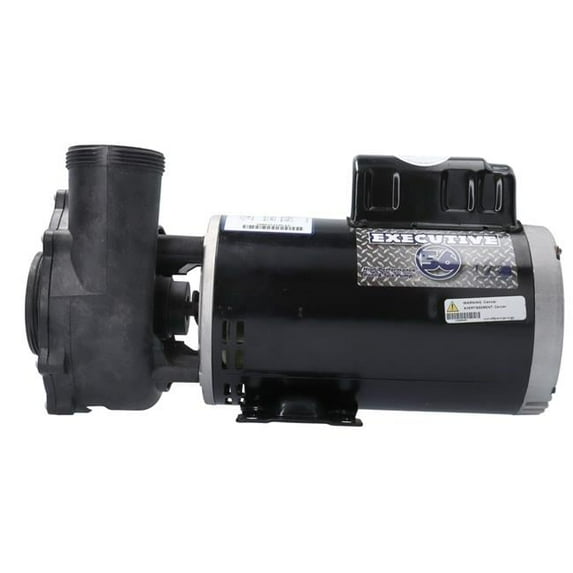

Waterway Plastics 3722021-13 Executive 56 5 HP 230V 2-Speed 2.5 x 2 in. MBT SD 56-Frame Pump

Executive wet end designed to fit 48 & 56-frame motors with large 2 & 2.5 in. intake for improved flow performance and reduced noise. Thermally protected to extend life expectancy of motor.

• Executive wet end designed specifically for 56-frame motors
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• Two speed motors have four sets of insulated windings for high performance
• 56-frame motor for added strength, cooler operating temperature and longer motor life
• Large 2.5 in. intake for improved flow performance and reduced noise
• Large 6.5 in. diameter wet end for higher head pressure
• Split capacitor, start and run for less energy consumption
• Highly versatile wet end can be rotated every 90 degree
• Silicone carbide seals, viton bellows, 316SS casing

• Horsepower: 5 HP
• Voltage: 230V
• Amperage: 16.4/4.8A
• Intake and Discharge: 2-1/2" x 2" MBT
• Flow Rate: 260 GPM
• Frame Size: 56Y
• Country of Origin: USA
