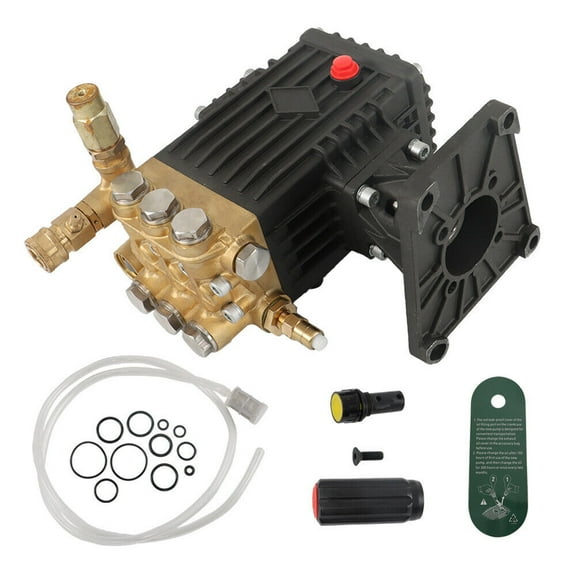

ALL-CARB 3600 PSI 4.9GPM Pressure Power Washer Pump 24mm Solid Shaft Belt Drive

24mm shaft

Spare parts (seals, valves and plungers) are available

These pumps ship with no oil .  Please remember to fill with oil before use (as per included instructions).

The oil should be changed after the first 10hrs of use (break in period) and then after every 100hrs

24mm Solid Shaft Pressure Power Washer Pump 3600 PSI 4.9GPM Belt Drive

Replacement Mi-T-M 3-0308

Feature：

Will Replace General pump TS series. AR Rk sries .Does not ship with frame Rails, Using existing frame rails may need modification

Unloader Valve Included, Can be used with Universal external bypass unloaders as well.

1/2" NPT inlet / 3/8" NPT Out

Forged brass manifold, Stainless Steel valve springs

Plasma Coated Ceramic plunger,to increase resistance to pitting and wear, for maximum durability.

Strengthened one-piece alloy aluminum connecting rod.

German Parker Seal packings.

Ball and roller bearing on the crank shaft, for maximum life and load distribution.

Bolt-on pressure adjustable unloaded Stainless steel banjo bolt in-line water filter, Fixed rate detergent injector. (injector Hose included.)

Package Including：

1*Pressure Power Washer Pump 24mm Solid Shaft 3600 PSI 4.9GPM Belt Drive
