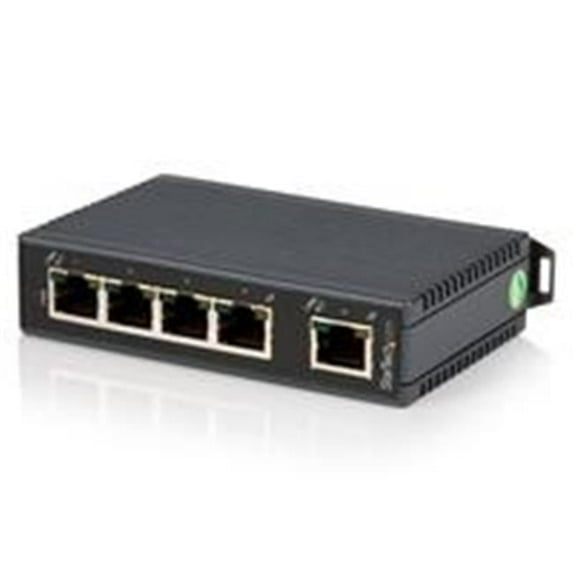

StarTech.com IES5102 5 Port Industrial Ethernet DIN Rail Mountable Switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

• Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
• Wide-range 12-48V DC terminal block input
• Easy installation with an integrated DIN rail bracket
• Wider range of operating temperatures, ideal for industrial environments
• IEEE 802.3az Energy-Efficient Ethernet
• Supports 10BaseT/100BaseTX and Full-Duplex/Half-Duplex Auto-negotiation
• Supports IEEE 802.3x flow control and back pressure
• Store-and-forward switching mechanism
• 5 Port Industrial Ethernet DIN Rail Mountable Switch

• Industry Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
• Interface: RJ45 (10/100 Ethernet)
• Ports: 5
• Auto MDIX: Yes
• Auto-Negotiation: Yes
• Buffer Size: 56 KB
• Compatible Networks: 10/100 Mbps
• Flow Control: IEEE 802.3x Full-Duplex
• Full Duplex Support: Yes
• Jumbo Frame Support: No
• Maximum Cable Length: 328 ft. (100 m)
• Maximum Data Transfer Rate: 200 Mbps (Full-Duplex)
• MTBF: 1,179,133 Hours
• External Ports: 5 - RJ-45 Female
• OS Compatibility: OS Independent; No additional drivers or soft.ware required
• LED Indicators: 1 - Power
• Input Voltage: 12 ~ 48 DC
• Weight: 1.01 lbs
