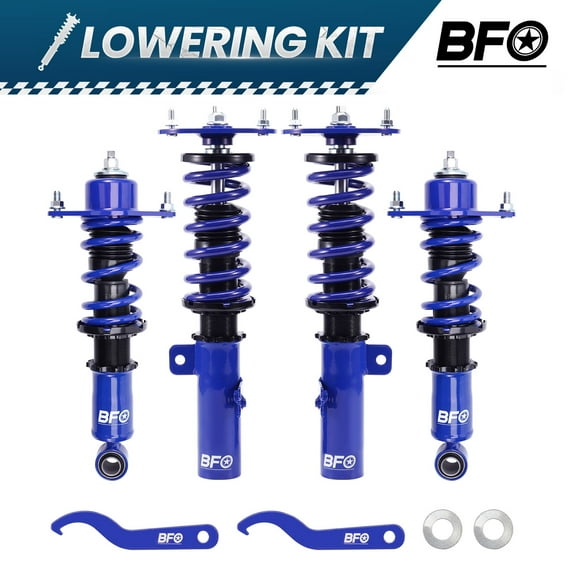

Maxpeedingrods Coilover Shock Struts For Toyota Corolla E160 E170 09-19 Matrix E140 09-14

Application

for TOYOTA COROLLA  (E140) AZE141L XRS 2009-2010

for TOYOTA COROLLA  (E140/E160) ZRE142L LE 2009-2013

for TOYOTA COROLLA  (E150/E170) ZRE172L all 2014-2019

for TOYOTA MATRIX (E140)  LE 2009-2014

Key Features

1. Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.

2. Full-length height adjustable---lower your car 1-3 inches (depending on vehicle models) to get a performance ride

3. Independent Ride Height and Spring Pre-load Adjustments

4. Twin-Tube System for Comfortable Ride on Streets

5. Coated finish to avoid rust

6. Heavy Duty Steel Lower Mounts

7. Simple install,  easy to adjust.

Why Choose Twin-tube  Coilovers

1. It is easier to secure sufficient stroke, because the oil and gas chambers are separated and not positioned serially.

2. The use of base valve enables to keep gas pressure low, allowing for a more comfortable ride.

3. Low gas pressure avoids stress on seals and keeps friction low.

4. Compared to the inverted type, friction can be suppressed.

5. Even if the shell case is slightly damaged, the function of the shock absorber remains unaffected.

6. Superior manufacturing processes allow to keep production costs low.

Specification

Damping: No adjustable damper force.

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Spring length Front: 200mm

Spring length Rear: 160mm

Adjustable height: lowering 1-3 inch

Coilover overall length Front: 360mm-455mm

Coilover overall length Rear: 313mm-370mm

Shock Type: Twin tube

Spring Preload: 7-10 mm

Color: Blue

Package included

- Complete coilovers for 2 front and 2 rear

- A pair wrench for height adjustment
