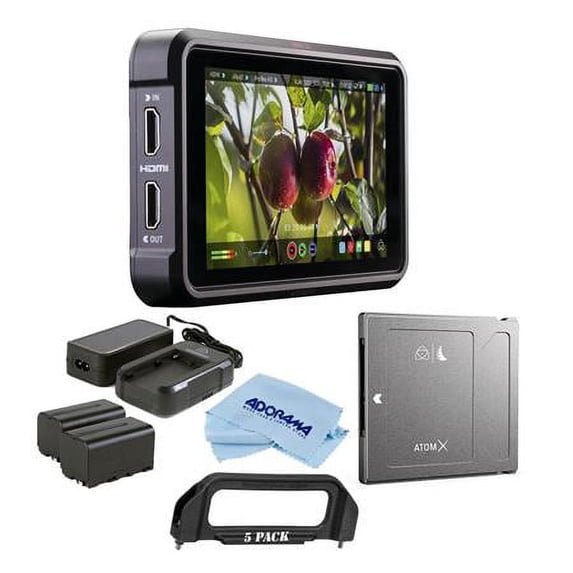

Ninja V 5" Touchscreen Recording Monitor, 1980x1080, 4K HDMI Input - Bundle With Atomos Power Kit, Angelbird AtomX SSDmini 1TB External Solid State Drive, Microfiber Cloth, Atomos Handle Ada
Atomos

Ninja V 5" Touchscreen Recording Monitor, 1980x1080, 4K HDMI Input - Bundle With Atomos Power Kit, Angelbird AtomX SSDmini 1TB External Solid State Drive, Microfiber Cloth, Atomos Handle Ada

(No ratings yet)

Key item features

  • Size

    5"

  • Resolution

    1920 x 1200

  • PPI

    427

  • Aspect ratio

    16:9 native

  • Color Gamut

    REC709 HDTV

  • Look up table (LUT) support

    3D LUT (.cube format)

  • Anamorphic de-squeeze

    2x, 1.5x, 1.33x, Panasonic 8:3

  • Technology

    SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

  • AtomHDR

    Yes

  • Supported Log formats

    Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog, Nikon N-Log

  • HDR Recording (Gamut)

    Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG

  • HDR Monitoring (Gamma)

    Sony SGamut / SGamut3 / SGamut3.cine / BT2020
    Canon Cinema / DCI P3 / DCI P3+ / BT2020
    Panasonic V Gamut
    Arri Alexa Wide Gamut
    Rec709
    JVC LS300
    Red DragonColor / DragonColor2 / RedColor2 /
    RedColor3 / RedColor4 / RedWideGamut

  • HDR Monitoring (Gamut)

    Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out

  • Bit depth

    10-bit (8+2 FRC)

  • Brightness

    1000nit (+/- 10% at center)

  • HDR input (PQ/HLG)

    Yes / Yes

  • HDR output (PQ/HLG)

    Yes / Yes

  • HDMI

    1x HDMI (2.0)

  • Signal

    Uncompressed true 10-bit or 8-bit 422 (camera dependent)

  • HDMI

    1x HDMI (2.0)

  • Signal

    Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

  • HDMI to HDMI

    720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/100/120
    2160p 24/25/30/50/60

  • Video

    Up to 4Kp60

  • Audio

    12 channels digital 24-bit 96KHz

  • Power

    5V-16.6V

  • Video to ProRes / DNxHR

    Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
    4K DCI; 24/25/30/50/60p
    4K UHD; 24/25/30/50/60p
    2K
    1080p; 24/25/30/50/60/100/120
    1080i; 50/60i, 720p; 50/60p (DNx utilizes a .MOV wrapper)

  • Pulldown removal

    24/25/30pSF > 24/25/30p (2:2 pulldown)
    60i > 24p (3:2 pulldown)

  • 4K UHD downscale for HD monitoring

    Yes - Loop-out and playback

  • HDMI

    2 or 8ch 24-bit, camera dependent

  • Audio

    Line in / Mic in / Headphone out 2ch 48kHz 24-bit

  • Headphone out

    3.5mm

  • Built-in speakers

    Yes

  • HDMI

    Auto HDMI Trigger
    Supported Protocols - Canon, Sony, Atomos Open Standard

  • Other

    LANC control - Slave

  • Playlist

    Yes

  • ProRes (Recorded content)

    All recorded files can playback. Playback in slow motion

  • DNxHR / DNxHD (recorded content)

    All recorded files can playback. Playback in slow motion

  • Pre-roll record

    Yes (HD 8s, 4K 2s)

  • Custom timelapse

    Yes

  • Meta data tagging

    Yes (10 tags available)

  • Supported media

    2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate

  • Master caddy dock

    2.5" SATA to USB 2.0/3.0

  • Supported applications

    Supported Applications FCPX/FCP7+ / Media Composer
    5.0+ / Premiere 5.5+
    EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
    Autodesk Smoke 2015

  • XML support

    FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

  • Operating power

    10 - 19W

  • Compatible batteries

    NP-F series and supporting accessories

  • Input voltage (battery)

    6.2V to 16.8V

  • Battery time (based on 2x 7.4V)

    5200mAh - up to 2hrs (monitor & record 4K 60p)
    7800mAh - up to 3hrs (monitor & record 4K 60p)

  • Construction

    Aluminum alloy chassis with ABS polycarbonate back plate

  • Mounting points

    1/4-20 UNC screw mount; 1x top, 1x bottom

  • Dimensions

    Monitor (WxHxD): 151 x 91.5 x 31mm (5.94 x 3.60 x 1.22")
    Master caddy case: 75 x 105 x 12mm (2.95 x 4.13 x 0.47")

  • Weight

    Without batteries & media: 320g (11.29 oz)
    With stand: 6.0kg (13.23 lbs)
