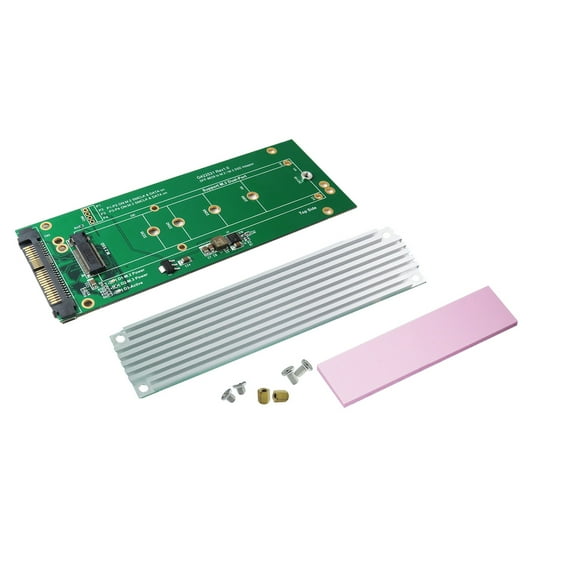

U.2 (SFF-8639) to M.2 NVMe / M.3 Adapter with Heat Sink

Features

• M.2 NVMe to‌ U.2 (SFF-8639) converter
• M.3 to‌ U.2 (SFF-8639) converter
• Build in M.2 M-key Female connector
• Build in SFF-8639 connector, pin-out defined by PCIe
• PWM synchronous buck converter Power IC
• 4A maximum output current
• Short circuit protection
• In-rush current suppression
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/2KV
• Supports SMB_CLK

• Supports SMB_DATA

• D1 Green LED on indicates M.2 NVMe SSD power ready
• D2 RED LED Blinking indicates M.2 SSD active status

Specifications

• Compliant with SAMSUN M.3 Datasheet v0.4NVME Express 1.2
• Compliant with NVM Express Version 1.0a
• Supports PCI Express Base Specification Rev 3.0
• Supports SSD Form Factor Version 1a
• Compliant with PCI Express M.2 Specification Version 1.0
• Compliant with SFF-8639 Specification Rev 2.0

NOTE : SSD's shown in pictures are for illustration only and are not included.

M.2 SSD Form Factor Support: Supports M.2 Socket SSD type 2230, type 2242, type 2260, type 2280 and type 22110 D2 - B - M

Micro SATA Cables PN # SFF-1379-M2
