6 String PV Combiner Box - 125A Circuit Breaker, Lightning Arrestor, Solar Connector, 15A Rated Fuse
Visit the VEVOR Store

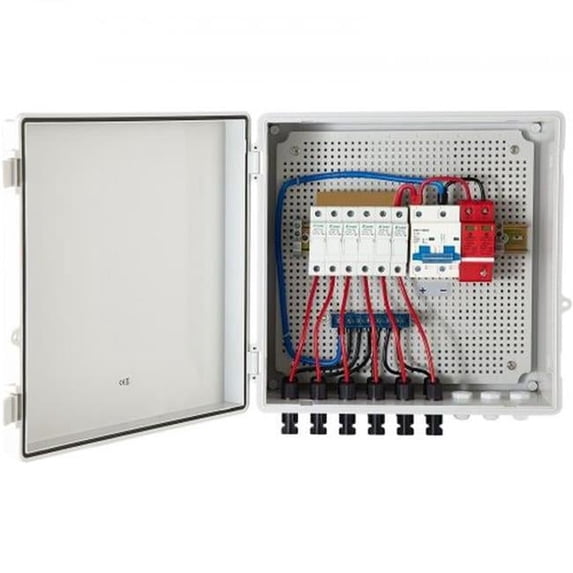

6 String PV Combiner Box - 125A Circuit Breaker, Lightning Arrestor, Solar Connector, 15A Rated Fuse

|3 ratings

Key item features

  • Key Features:
  • Efficient Photovoltaic System - The PV combiner box simplifies photovoltaic module connections, reduces system complexity, and increases output power.
  • Robust Protection - With six 15A DC fuses, a high-voltage lightning arrester, and a 500V 125A air circuit breaker. It provides short-circuit, lightning surge, overvoltage, overcurrent, and grounding protection.
  • Durable Design - The IP65 waterproof and dustproof design ensures long-term usage without replacement. The ABS plastic shell is sturdy for reliable protection.
  • Easy Installation and Wiring - Compatible with any brand of solar panels with solar connectors.
  • Versatile Application - Suitable for photovoltaic on/off-grid solar power generation systems, solar panel systems, PV arrays, and more.
  • Specifications:
  • Model: SWHL-6
  • Number Of Max. Connection PV Array: 6
  • Max. Input Current of Single PV Array: 15A
  • Total Input Current of PV Array: 90A
  • Max Input Voltage of Single PV Array: 500V
  • Max Output Voltage: 500V
  • Protection Grade: IP65
  • Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉
  • Relative Humidity: 0–95%, No Condensation
  • Cooling Method: Natural Cooling
  • Surge Lightning Protection: Yes
  • Surge Protective Device: In: 20kA; Imax: 40kA; Up: 1.8kV
  • SPD Indicate Light Status: Green: Normal; Red: Triggered
  • Air Circuit Breaker Parameter: 500V, 125A; ON/OFF
  • Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in
  • Fuse Holder Parameter: DC1000V, 32A
  • RV Solar System: 1080W in 12V System, 2160W in 24V System, 4320W in 48V System
  • Product Dimensions (L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in
  • Net Weight: 3.5 kg / 7.72 lbs
  • Package Content:
  • 1 x PV Combiner Box
  • 1 x Solar Connector Tool
  • 4 x Mounting Buckles
  • 4 x Screws
  • 1 x Product Manual
