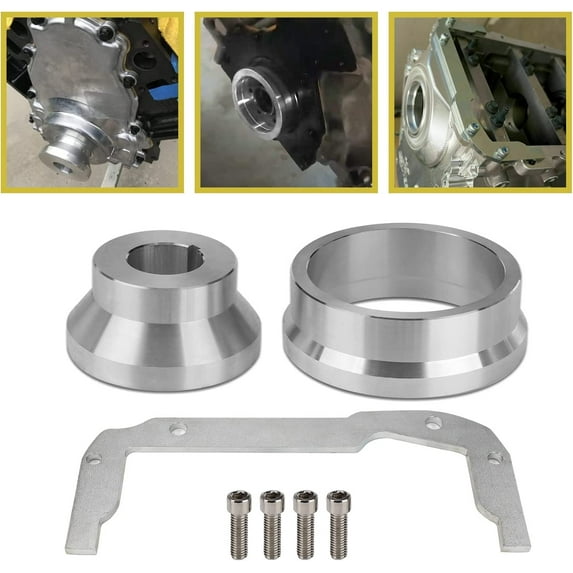

Hero image 0 of 3mirrors LS Alignment Tool, Front and Rear Cover Alignment Tools & Oil Pan Front Cover Alignment Tool Kit for GM LS Engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92, 0 of 6
3mirrors LS Alignment Tool, Front and Rear Cover Alignment Tools & Oil Pan Front Cover Alignment Tool Kit for GM LS Engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS6 L99 LS4 LS9 LSA LQ4 LQ9 L76 L92
(No ratings yet)
Check if this fits your vehicle
Key item features
- Wide Compatibility: Perfect for GM LS engines including 4.8, 5.3, 5.7, 6.0, LS1, LS2, LS3, LS4, LS6, LS7, L99, LS9, LSA, LQ4, LQ9, L76, L92, and more.
- Oil Pan Alignment: The Oil Pan Alignment Tool ensures precise alignment and resists cylinder stress, crucial for proper engine function.
- Seal Replacement: Ideal for replacing front or rear main seals on GM LS engines, ensuring the bonnet is centered and stable.
- Durable Construction: Made from Billet aluminum, offering great durability and tight tolerances for perfect alignment.
- Engine Builder Essential: Perfect for engine builders and mechanics working on GM LS series engines, ensuring accurate seal replacement.
- Seal Functionality: Ensures Teflon inner sealing lips are perfectly concentric to the front diameter on the balancer hub and rear sealing surface for optimal performance.
Generated by AI
Specs
- Vehicle model016-GM01
- Vehicle makeGM
- Vehicle fitment typeUniversal
- Brand3mirrors
- Automotive specialty part typeAlignment Tools
- MaterialBillet aluminum
Current price is USD$35.99
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
For LS engines utilize front and rear seals with Teflon inner sealing lips.
For proper seal function and longevity, it is critical that the seals be aligned perfectly concentric to the front diameter on the balancer hub and rear sealing surface.< br> Perfectly fits for GM LS series engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS4 LS6 LS7 L99 LS9 LSA LQ4 LQ9 L76 L92.
For proper seal function and longevity, it is critical that the seals be aligned perfectly concentric to the front diameter on the balancer hub and rear sealing surface.< br> Perfectly fits for GM LS series engine 4.8 5.3 5.7 6.0 LS1 LS2 LS3 LS4 LS6 LS7 L99 LS9 LSA LQ4 LQ9 L76 L92.
- Perfect for 4.8 5.3 5.7 6.0 L20 L33 L59 L76 L77 L83 L86 L92 L94 L96 L98 L99 L9H L8T LC9 LFA LH6 LH8 LM4 LM7 LR4 LS1 LS2 LS3 LS4 LS6 LS7 LS8 LS9 LSA LSX LT1 LT2 LT4 LT5 LT6 LQ4 LQ9 LY2 LY5 LY6 LZ Engines.
- The oil pan is a stressed member, so centering the cylinder can be difficult. The Oil Pan Alignment Tool does a great job of aligning and resisting the stress of the cylinder.
- The alignment tools are perfect for replacing the front or rear main seal for the GM LS engine, ensuring the bonnet is centered and improving stability. It is the best choice for replacing the front or rear of the GM LS engine.
- Machined from Billet aluminum with great durability and tight tolerances for perfect alignment. Perfect for engine builders and mechanic to replace the front or rear main seal for GM LS series engine
- If you have any quality problems, please feel free to contact us. We will give you a new replacement or a full refund.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
