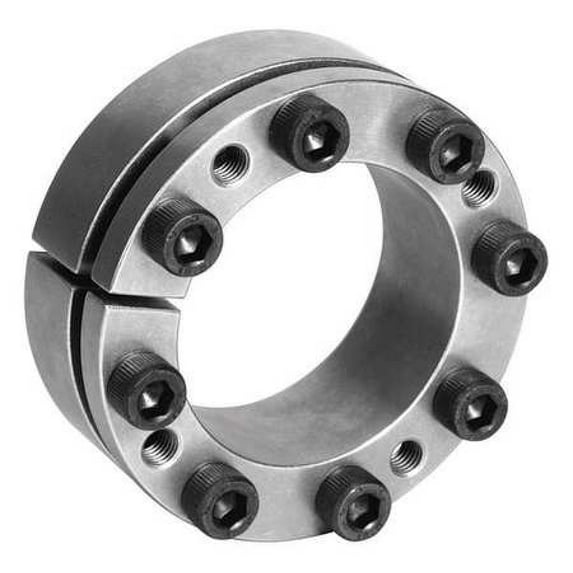

CLIMAX METAL PRODUCTS C123M-95X135 KeylessLockAssem,C123M Ser,3.74 Shaftdia

Keyless Locking Assembly, Keyless Bushing Type Multi-Screw Locking Assembly, Keyless Bushing Series C123M, For Shaft Dia. - Bushings 95mm, Outside Dia. 135mm, Overall Length 50.5mm, Material - Bushings Steel, Transmissible Torque 494 ft.-lb., Shaft Dia. Tolerance +0/-.002 In., Outside Dia. Tolerance +0/-.002 In., Transmissible Thrust (Lbs.) 38003.953, Hub Contact Pressure (PSI) 28525.301, Locking Bolt Quantity 10, Bolt Size M10 x 30, Withstand Temp. (Deg. F) Up to 400, Finish Oil Dipped

Features

• Outside Dia.: 135mm
• Agency Compliance: RoHS
• Outside Dia. (mm): 135
• Overall Length: 50.5mm
• Type: C123M Series
• Material - Bushings: Steel
• Overall Length (mm): 50.5
• Keyless Bushing Type: Multi-Screw Locking Assembly
• Item: Keyless Locking Assembly
• Locking Bolt Quantity: 10
• Hub Contact Pressure (PSI): 28525.301
• Material: Steel
• Shaft Dia. (In.): 3.74
• Withstand Temp. (Deg. F): Up to 400
• Shaft Dia. (mm): 95
• Keyless Bushing Series: C123M
• Outside Dia. Tolerance: +0/-.002"
• Shaft Dia. Tolerance: +0/-.002"
• Transmissible Thrust (Lbs.): 38003.953
• Overall Length (In.): 1.988
• Outside Dia. (In.): 5.315
• For Shaft Dia. - Bushings: 95mm
• Finish: Oil Dipped
• Package Quantity: 1
• Bolt Size: M10 x 30
• Transmissible Torque: 494 ft.-lb.
• Transmissible Torque (Ft.-Lbs.): 494
