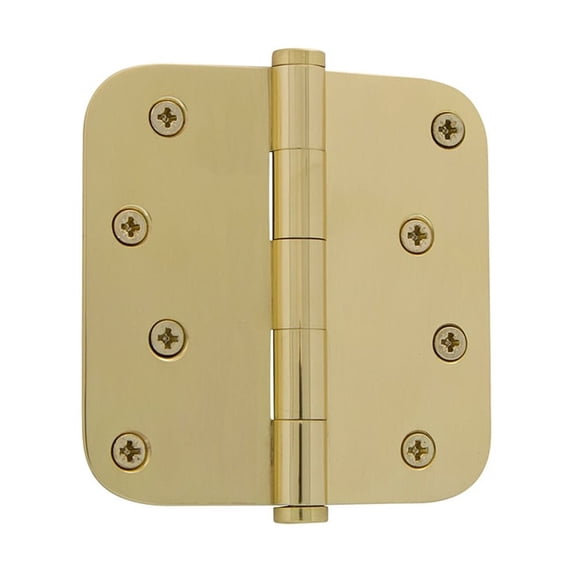

Grandeur 819984 4 X 4" Plain Bearing 5/8" Radius Corner Mortise Door Hinge - Brass

Features:

• Includes a single hinge in each order
• Precisely machined 5/8" radius corners
• Removable pin for easy installation
• Packaged with hinge, hinge pins, and mounting hardware
• Constructed with eight screw holes in a zig zag arrangement
• Tested for residential strength applications
• Covered by limited lifetime mechanical and 5 year finish warranties

Product Technologies:

• Material - Solid Brass: Solid brass is prized for its resilience, durability, and beauty. It can always be polished back to its original sheen and is highly resistant to rusting. Solid brass is often available in finishes that other hinge materials are not.

• Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.

• Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

• Height: 4"
• Width: 4"
• Material: Brass
• Mounting Type: Mortise
• Gauge (Thickness of Hinge): 0.0866"
• Number of Knuckles: 5
• Number of Holes: 8
• Removable Pin: Yes

• BUTHNG-RD-MAR-RES-3.5: 3.5 x 3.5 Inch Door Hinge
• BUTHNG-RD-ST-RES-4 (This Model): 4 x 4 Inch Door Hinge
