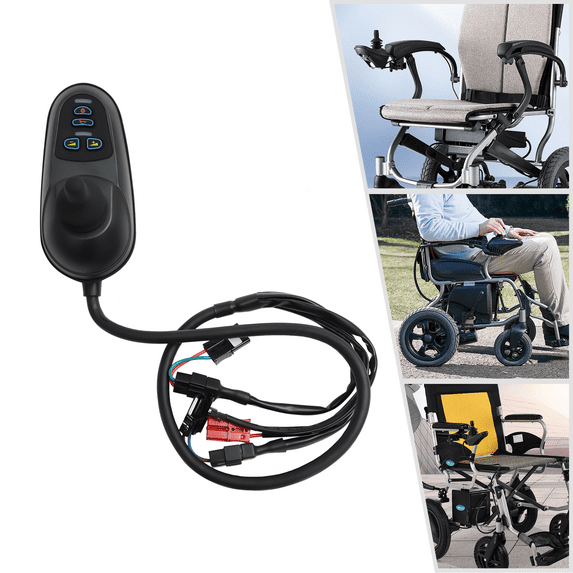

MONIPA Electric Mobility Wheelchair Joystick Controller 360° Steering 5 Speeds 24V DC

Description

Although the moon is cloudy and full, dreams have wings and we can fly. We are full of love to bring you the products that will enhance your happiness. We create flawless enjoyment for you with the passion that emanates from this joystick controller. It is equipped with an intelligent operating system, which provides smooth starting, flexible acceleration and deceleration, smooth gear shifting, and a non-stopping feeling, giving you the ultimate enjoyment.

Specification

Item Type: Electric Wheelchair Controller

Model: WB5003

Color: Black

Style: Electric

Material: Aluminum, Plastic

Connection Mode: ML2P+Adapter Cable

Brake Voltage: 24V

Output Current: 50A

Operating Voltage: DC 19-32V

Charging Current: Max. 6A

Peak Voltage: DC 35V

Supply Voltage: DC 24V

Standby Required Current: (At rest): ≤50 mAmps

Standby Required Current (Power off): 0.1+0.05 mAmps

Waterproof Level:  IPX3 Electronic Equipment

Adjustable Speed: 5 Gears

Operating Temperature: -25°C~60°C/-13℉~140℃

Storage Temperature: -45 °C~ 80°C/-49℉~176℉

Applicable Drive Motor: 24V DC Brush Motor

Gross Weight: 1.3kg/2.87lbs

Net Weight: 1.2kg/2.65lbs

Mounting Hole Pitch: 40mm/1.57in

Product Size: 19*9.3*8.8cm/7.48*3.66*3.46inch

Package Size: 23*13*16cm/9.06*5.11*6.3inch

Details

External Interface: It has an external interface for charging of other external devices.

Rounded Edges: The edges of the product are designed with rounded corners rather than sharp edges to avoid scratches.

Clear Indicator Lights: The joystick controller comes with clear power indicator light and speed status light, which is convenient for you to observe its using status.

Speaker Button: The joystick controller comes with a speaker function, which is in line with the use of people with disabilities. It can be turned on and off flexibly, so you can use it in different environments.

Application

It is suitable for electric wheelchairs, intelligent robots, entertainment equipment, bar carts, and monitoring and control platforms for various customized mobile products.

How to Use

Power on/off: Press this key to turn on the power, the battery indicator light turns on, and the controller system enters the startup procedure, press this key again to turn off the power, and it needs to be pressed for more than 0.5 seconds to prevent misoperation.

Deceleration Key: Reduce the maximum speed of driving, press once to reduce the speed by one gear, and the speed is displayed as the current speed gear.

Accelerator Key: Increase the maximum speed of driving, press once to increase the speed by one gear, and the speed will be displayed as the current speed gear.

Joystick: Control the speed and direction of driving and parking. The direction of the joystick is the same as the direction of travel, and the joystick is naturally released (in the middle position) to stop running.

Horn Key: Horn whistle/buzzer beep

Package Included

1 x Joystick Controller

Other Accessories for Installation

Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
