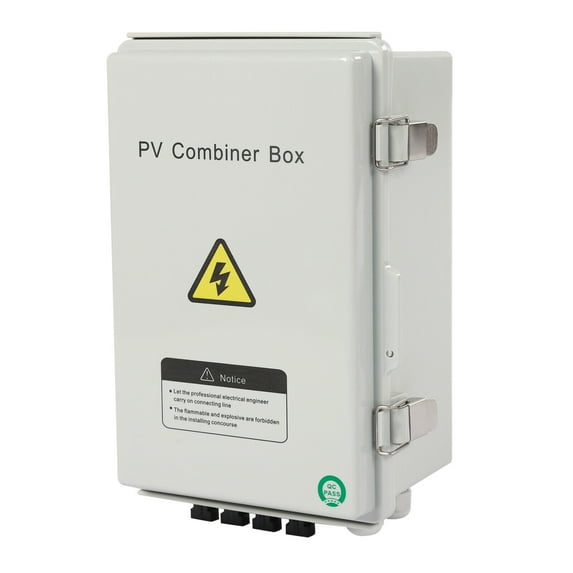

Wall Mount 4 String Solar PV Combiner Box and 63A Circuit Breaker for Solar Panel System White
Key item features
- Selected Materials: Made of high-quality ABS and PC material, it can resist impact, corrosion, wear, and break and has good insulation, keeping your equipment well protected in harsh environments and ensuring extended durability.
- Professional and Powerful: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
- High Safety: It adopts 4 strings with 10A rated current fuse, 2 surge protection devices, and a 550V 63A circuit breaker, and has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to the photovoltaic panels and inverters when a fault occurs.
- Easy Installation & Wiring: A plug-and-play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. With 4 mounting plates, it can be mounted on any regular surface. And the built-in ground wire connector makes ground wire installation available.
- Wide Compatibility: It is compatible with any brand of solar panels with solar connectors, which can meet your use needs.
- Free shipping
Free 30-day returns
How do you want your item?
More seller options (1)
About this item
Product details
Description
The PV combiner box is made of high-quality ABS and PC, so it is strong and durable. It can make the photovoltaic system at its best and increase output power. It features 4 strings with 10A rated current fuse, a high-voltage lightning arrester, 2 surge protection devices, and a 550V 63A circuit breaker, so it is safe to use and will be your ideal choice.
Application
The PV combiner box is suitable for photovoltaic on-grid/off-grid solar power generation systems, solar panel systems, PV arrays, RV solar power, and home solar panel systems and is mainly used with solar panels in office buildings, industrial factories, residential buildings, carports, etc. It can support solar panel systems up to 720W in a 12V system, 1440W in a 24V system, and 2880W in a 48V system.
Specification
Color: White
Material: ABS, PC
Style: Modern
Circuit Breaker Type: Standard
Mounting Type: Wall Mount
Operating Temperature: -30~70℃/-22~158℉
Input: 4 Strings
Output: 1 String
Number Of Poles: 4
Current Rating: 63A
Number Of Max. Connection PV Array: 4
Max. Input Current of Single PV Array: 10A
Total Input Current of PV Array: 40A
Max Input Voltage of Single PV Array: 1000V
Max Output Voltage: 600V
Protection Grade: IP65
Relative Humidity: 0-95%, No Condensation
Cooling Method: Natural Cooling
Number of Surge Protection Devices: 2
Surge Protection Device: 40KA, 600V
Number of Circuit Breakers: 1
Circuit Breaker: 63A, 550V
Product Size: 21*14.5*33cm/8.26*5.7*13inch
Package Size: 20*23*12cm/7.87*9.05*4.72inch
Net Weight: 2.8kg/6.17 lbs
Gross Weight: 3kg/6.6 lbs
Package Included
1* PV Combiner Box
1* Combination Lock
4* Mounting Plates
Other Accessories for Assembly
Notes
The green indicator on the surge protection devices means a normal state. Once it turns "red", please remember to replace it with a new surge protection device.
Please let the professional electrical engineer carry on connecting line. Ang the flammable and explosive are forbidden in the installing concourse.
Please pay attention to electricity safety.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
- Selected Materials: Made of high-quality ABS and PC material, it can resist impact, corrosion, wear, and break and has good insulation, keeping your equipment well protected in harsh environments and ensuring extended durability.
- Professional and Powerful: PV combiner box tidied up connection and confluence of photovoltaic modules. It is used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, make it easy to cut off the circuit in maintenance and reduce the scope of the power outage when the photovoltaic system fails. It will make the photovoltaic system at its best and increase output power.
- High Safety: It adopts 4 strings with 10A rated current fuse, 2 surge protection devices, and a 550V 63A circuit breaker, and has short circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to the photovoltaic panels and inverters when a fault occurs.
- Easy Installation & Wiring: A plug-and-play and pre-connected cable offers an easy solution for solar panel connection, saving at least 1-2 hours of wiring by hand. With 4 mounting plates, it can be mounted on any regular surface. And the built-in ground wire connector makes ground wire installation available.
- Wide Compatibility: It is compatible with any brand of solar panels with solar connectors, which can meet your use needs.
Warranty
Warranty information
