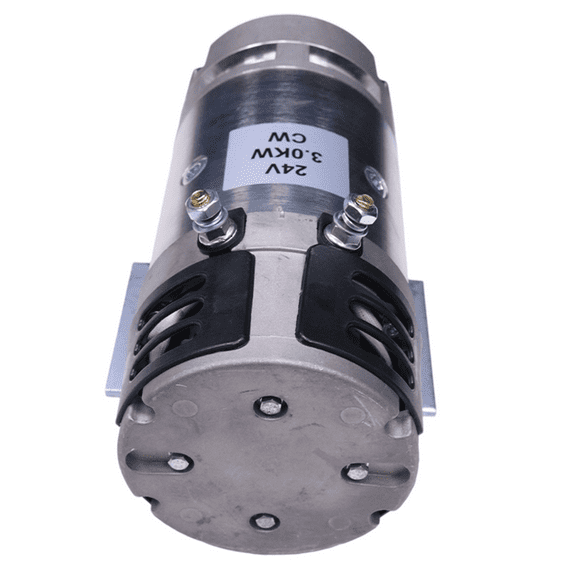

24V Pump Motor 123477 For Skyjack SJIII 3215 3226 4632 3015 3219 4626 3220

Part Number:
123477, 106576, 220856, SJ-106576, SJ107486, 107486, AMK4635, IM0284, MAHMM288, MM 288, ZD2374,11.216.146

Uses Brush Kit:
122967

Interchange Number:
Skyjack - 2201054, 715141, 8106-1184, L23477, X-11.216.130, X-439-969, X-L23477

Specification:
24VDC, 4.0 H.P., Clockwise Rotation, 3,100 RPM, Motor O.D. 125mm, Motor Length 273mm, Single Slotted Shaft, Shaft Diameter 22.5mm, D1 Terminal 3/8-16, A2 TERMINAL 3/8-16

Applications:
Fit for Skyjack Electric Scissor Lift:
SJIII 3015 (S/N 151981 & below), SJIII 3215 (S/N 10 001 093 & below), SJIII 3219 (S.N 22016731 and below), SJIII 3220 (S/N 60 004 660 & below), SJIII 3226 (S/N 27 020 826 & below), SJIII 4626, SJIII 4632 (S/N 70 020 611 & below)
