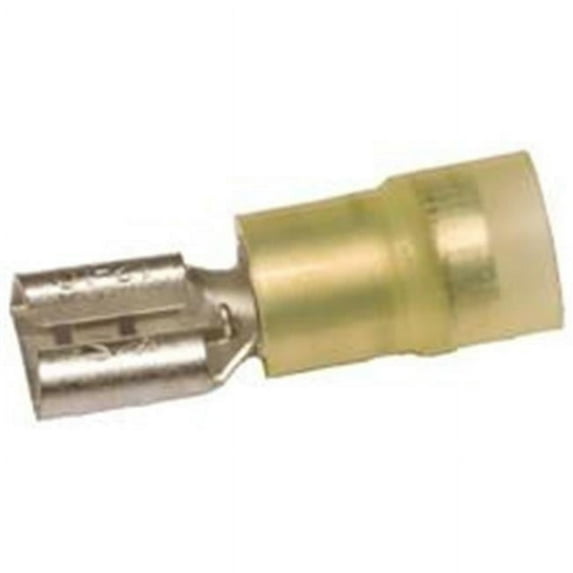

Morris Products 11926 Nylon Insulated Double Crimp Female Disconnects - 12-10 Wire,.02 0 X.110 Tab, Pack Of 100

Nylon Insulated Double Crimp Female Disconnects - 12-10 Wire, .020x.110 Tab - Resupply your Nylon Insulated Female Disconnectors.

• Female Quick Disconnects feature Nylon Insulation.
• Color Coded insulation for easy identification.
• Manufactured from high strength electrolytic copper alloy.
• Electro-tin plated for corrosion resistance.
• Easy entry expanded insulation eliminates strand “Hang Up”, increasing crimping rates and provides mechanical strain relief.
• Wire range and tab size stamped on the surface for easy interpretation.
• Terminal barrel has butted seam.
• Serrated barrel provides excellent electrical contact &resistance to pull-out forces.
• Double Crimp extended crimp sleeve provides for multiple crimps resulting in improved electrical contact and pull-out force resistance.
• 221°F (105°C) 600 Volts Max.
• Maximum electric current - 22 AWG - 3 Amp, 20 AWG - 4 Amp, 18 AWG - 7 Amp, 16 AWG - 10 Amp, 14 AWG - 15 Amp, 12 AWG - 20 Amp, 10 AWG - 24 Amp.

• Color - Yellow.
• Wire Size - 12-10.
• Bag Qty - 100.
• Pack of - 100.
• Item Weight - 0.32 lbs.
