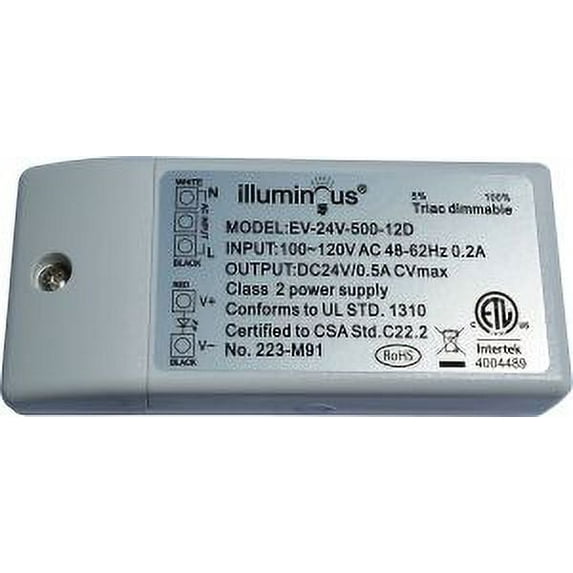

24V 12W Dimmable CV DC LED Driver ETL approved
Key item features
- Power Input: Operates within an input range of 100-120V AC, 50-60Hz, with a power factor greater than 0.95.
- Dimmable Output: Provides a magnetic dimmable DC output of 24V, 500mA (12W), functioning as a Class 2 power supply.
- Dimmer Compatibility: Compatible with both leading edge and trailing edge TRIAC dimmers for versatile dimming control.
- Robust Protection: Features built-in protection against short-circuit, over current, and over voltage, with an auto-recovery mode for enhanced safety.
- Compact Design: Encased in a compact, lightweight plastic housing, measuring 3.56" L x 1.63" W x 0.75" H.
- Secure Connections: Utilizes terminal screw connections for input (N, L) and output (+24V, GND), ensuring secure wiring.
- Safety Approvals: Certified with ETL, CE, TUV, and RoHS approvals, indicating adherence to safety and environmental standards.
- Operational Conditions: Designed to operate in temperatures from -20C to +45C at full load, with a maximum case temperature of 70C and 20-95% RH NC.
Generated by AI
Specs
- Input voltage120 V
- Watts12 W
- Works withLED
- Compatible brandsLutron, Insteon, GE
- BrandEversale
- Volts120 V
Current price is USD$13.75
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Thu, May 7
|
Sold and shipped by Eversale
3.1666666666666665 stars out of 5, based on 6 seller reviews(3.2)6 seller reviews
Free 30-day returns
Similar items you might like
Based on what customers bought
24V 60W Dimmable CV DC LED Driver UL approved $29.99
$2999current price $29.9924V 60W Dimmable CV DC LED Driver UL approved
12V 12W Dimmable CV DC LED Driver ETL approved $13.75
$1375current price $13.7512V 12W Dimmable CV DC LED Driver ETL approved
Transformer Led Driver Electronic 1 Piece 50-70W Ac180-265V50/60Hz Constant Current Dc150-240V240Ma Driver External $9.63
$963current price $9.63Transformer Led Driver Electronic 1 Piece 50-70W Ac180-265V50/60Hz Constant Current Dc150-240V240Ma Driver External
2 Pieces 8-12W LED Panel Driver Power Supply Transformer Constant Current 300 mA $11.36
$1136current price $11.362 Pieces 8-12W LED Panel Driver Power Supply Transformer Constant Current 300 mA
1Pcs Step Up Or Down Voltage Converter Transformer 100W 110V/120V To 220V/240V YIWEI $12.58
$1258current price $12.581Pcs Step Up Or Down Voltage Converter Transformer 100W 110V/120V To 220V/240V YIWEI
12W Led Transformer Dc 12V Led Panel Driver Power Supply Constant Current $12.92
$1292current price $12.9212W Led Transformer Dc 12V Led Panel Driver Power Supply Constant Current
10-60W 120V to 12V Dimmable Transformer UL approved $12.99
$1299current price $12.9910-60W 120V to 12V Dimmable Transformer UL approved
33.3 out of 5 Stars. 3 reviews24V 30W Dimmable CV DC LED Driver UL approved $23.99
$2399current price $23.9924V 30W Dimmable CV DC LED Driver UL approved
LED Driver 20-36W Transformer DC 60-120V AC 85-277V high quality $9.54
$954current price $9.54LED Driver 20-36W Transformer DC 60-120V AC 85-277V high quality
2pcs LED Electronic Transformer DC 12V 10W LED Driver Power Supply for LED Light $12.57
$1257current price $12.572pcs LED Electronic Transformer DC 12V 10W LED Driver Power Supply for LED Light
2X 3W LED Lamp Driver Electrical Transformer 85V - 265V $8.58
$858current price $8.582X 3W LED Lamp Driver Electrical Transformer 85V - 265V
AC 110/220V 24VDC 3A 72W Power Supply Transformer for LED Flexible Strip Lamp $11.63
$1163current price $11.63AC 110/220V 24VDC 3A 72W Power Supply Transformer for LED Flexible Strip Lamp
External Power Supply 8-24W Led Driver Electronic Transformer Constant Current YIWEI $5.20
$520current price $5.20External Power Supply 8-24W Led Driver Electronic Transformer Constant Current YIWEI
350mA Constant Current 1-8W DC LED Driver UL approved $12.22
$1222current price $12.22350mA Constant Current 1-8W DC LED Driver UL approved
LED Driver Transformer 4-7W Power Supply Constant Current Adapt 85-265V $9.48
$948current price $9.48LED Driver Transformer 4-7W Power Supply Constant Current Adapt 85-265V
External Power Supply 36-50W Led Driver Electronic Transformer Constant Current $10.04
$1004current price $10.04External Power Supply 36-50W Led Driver Electronic Transformer Constant Current
Feedannce 35W 36V 700mA LED Driver Power Supply - Constant Current, 90-264VAC MEAN WELL APC-35-700 $14.00
$1400current price $14.00Feedannce 35W 36V 700mA LED Driver Power Supply - Constant Current, 90-264VAC MEAN WELL APC-35-700
Uxcell 4-7W 300mA LED Driver AC 85-265V Output 12-28V DC Female Connector Transformer $8.99
3 optionsAvailable in additional 3 options$899current price $8.99Uxcell 4-7W 300mA LED Driver AC 85-265V Output 12-28V DC Female Connector Transformer
Circular LED Power Supply Driver Transformer AC180-260V LED Driver for Lamp $7.51
2 optionsAvailable in additional 2 options$751current price $7.51Circular LED Power Supply Driver Transformer AC180-260V LED Driver for Lamp
6X 12-18W 86-265V LED Power Driver $15.83
$1583current price $15.836X 12-18W 86-265V LED Power Driver
About this item
Product details
Input range from 100~120V AC, 50-60Hz, Pf> 0.95
Magnetic Dimmable DC Output: 24V, 500mA (12W), Class 2 Power Supply
Dimmable, Suitable for Leading Edge or Trailing Edge TRIAC dimmers (See datasheet for list)
Protection: Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
Magnetic Dimmable DC Output: 24V, 500mA (12W), Class 2 Power Supply
Dimmable, Suitable for Leading Edge or Trailing Edge TRIAC dimmers (See datasheet for list)
Protection: Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
- Input range from 100~120V AC, 50-60Hz, Pf> 0.95
- Magnetic Dimmable DC Output: 24V, 500mA (12W), Class 2 Power Supply
- Dimmable, Suitable for Leading Edge or Trailing Edge TRIAC dimmers (See datasheet for list)
- Protection: Short-Circuit / Over Current / Over Voltage and Auto-recovery Mode
- Compact, lightweight plastic case.
- Lamps wired in parallel
- Double Isolation for Safety
- Terminal Screw Connection (Input: N, L. Output: +24V, GND)
- Approvals: ETL, CE, TUV, RoHS
- -20C to +45C, full load, max case 70C, 20 to 95% RH NC
- Size: 3.56" L x 1.63" W x 0.75" H (90.9mm L x 41.4mm W x 19mm H)
- 2 year warranty
- Note: Dimming performance optimal at greater than 50% load. i.e. 13W+ for a 26W driver.
- So pick the right Eversale driver, 12W, 26W or 48W
- Note: Best Dimmers Leviton Decora Sureslide 6631, Lutron Diva DV-600PR, Insteon Switchlinc 2477D, GE Z-Wave Wireless 12724. Lutron LG-600H
- Eversale does not sell our product through any other reseller, ONLY direct. Other sellers are not selling Eversale Product and hence their specification, warranty, and features are not the same. Buy with confidence from Eversale.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Input voltage
120 V
Watts
12 W
Works with
LED
Compatible models
Leviton Decora Sureslide 6631, Lutron Diva DV-600PR, Insteon Switchlinc 2477D, GE Z-Wave Wireless 12724, Lutron LG-600H
Warranty
Warranty information
This product is guaranteed in the USA for a period of 2 years from the date of purchase, unless otherwise stated in current company literature. The guarantee is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of the National Electrical Code --- Work must be completed by a qualified electrician. Should this product fail during the guarantee period, it will be replaced free of charge, subject to correct installation and return of the faulty unit. illuminous LLC. or any subsidiary company of EverSale LLC. does not accept responsibility for any installation costs associated with the replacement of this product. Your statutory rights are not affected. EverSale LLCreserves the right to alter specifications without prior notice.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
