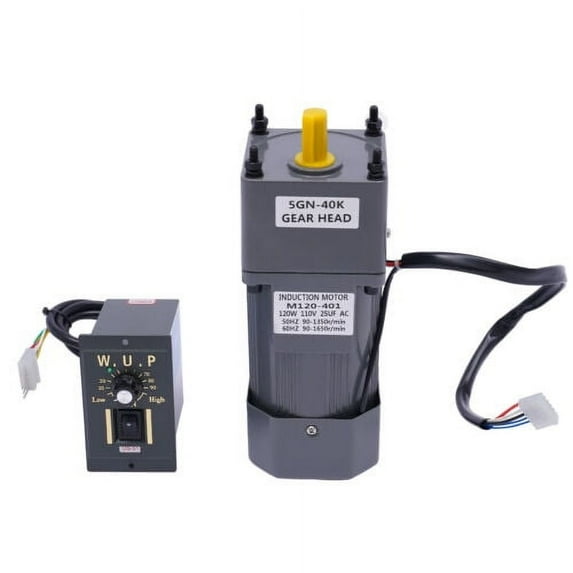

120W Gear Motor M120-401 Low Speed Mini Gearbox High Torque Geared Motor

120W 40K 110V AC Motor Low Speed Mini Gearbox Electric Motor Barbecue High Torque 110V Geared Motor Synchronous Reduction Motor Reversible


Description

This is an AC 110V gear motor with 120W power, which can achieve the 1350r/min speed. It uses pure copper coils and allows for low-noise&powerful working, making it suitable for homes, handcrafts, school projects, model-churning soda machines, low-speed machines, and any other product you want. You can turn the speed control knob to adjust the motor speed, realizing the desired effect.

How to Install

Please remove the holster before installation.
Fix the reducer on the gear motor with four screws.
Install the keyway at the keyway opening.
Plug the speed controller and gear motor together (main wire to main wire).
Unscrew the two AC screws on the back of the speed controller.
Connect single-phase power to both AC ports (without distinguishing between zero and fire wires) and tighten the screws.
Turn the speed control knob to adjust the motor speed.
Install the bracket(not included) on the motor.


Specifications

Model: M120-401

Color: Gray

Material: Cast Aluminum

Gear Material: Carburizing Steel

Processes: Plastic Spraying, Integration, Heat Treatment Process

Type: AC Gear Motor, Induction Motor

Shape: Square, Round

Feature: Portable

Power Phrase: Single-phrase

Motor: Pure Copper Motor

Noise: About 50-60db

Built-in Fan: ＞60W

Torque: 21N.m

Voltage: AC 110V

Power: 120W

Capacitance: 25UF

Speed: 50Hz 90-1350r/min, 60Hz 90-1650r/min

Reduction Ratio: 1:40 (40K)

Shaft Diameter: 12mm/0.47inch

Shaft Length: 28mm/1.1inch

Keyway: 4mm/0.16inch

Key Depth: 25mm/0.98inch

Dialogue Mounting Holes: 104mm/4.09inch

Axis Eccentricity: 18mm/0.7inch

Disc Diameter: 34mm/1.34inch

Through-hole: ∅8

Gear Motor Height: 16.5cm/6.5inch

Reducer Size: 9*9*6.2cm/3.5*3.5*2.4inch

Speed Controller Size: 9*6*10cm/3.5*2.4*3.9inch

Package Size: 28.5*24.1*12.5cm/11.22*9.48*4.9inch

Net Weight: 4.96kg/10.9lbs

Gross Weight: 5.3kg/11.68lbs

Package Included

1* Speed Controller

1* Gear Motor

1* Reducer

Notes

Based on the industrial standard, to meet the different needs of customers, our motor does not include a power cord. You need to purchase a power cord to connect.
The bracket is not included in this package, so you should purchase it yourself.
Please do not plug&unplug the power cable when the power is on. Please do not knock or beat the machine.
The speed reduction motor is composed of a motor and reducer, different speed ratios can achieve different speed regulation ranges, and they have different strengths.
Under different deceleration ratios, the output shaft speed is different. The output shaft speed is equal to the motor speed of 1350 rpm divided by the deceleration ratio. When the gearbox decelerates, the greater the speed ratio, the greater the force. The slower the speed regulated by the governor, the smaller the torque.
The motor can run for a long time within the safe speed regulation range. The safety speed range of a small load: is 50% of full speed-full speed; The safety speed range of a large load: is 70% of full speed-full speed.
