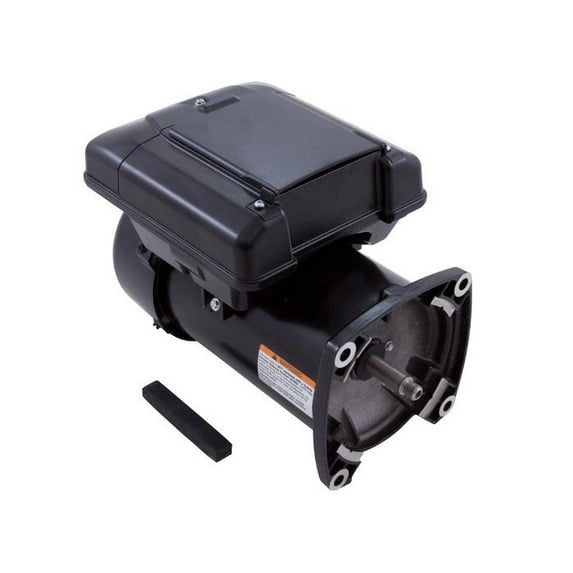

AO Smith Century VGreen 270 Square Flange Variable Speed Pool Motor 2.7HP 230V

VGreen 270 Square Flange Variable Speed Replacement Motor

An integrated timer interface that allows for easier installation and operation of a variable speed motor. The all-in-one design reduces installation time and expense with no additional wiring required. The VGreen motor can replace any single speed motor without replacing the pump, turning any pool into a high-efficiency system that is better for the environment and lowers the cost of pool ownership.

The amount of power required to move the water through the pipes drops much more quickly than the speed. While it may take one horsepower to move the water through the pipes on high speed, it only takes 1/8 horsepower to move one half as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount of water as on high speed, the lower horsepower results in significant energy savings.

Specifications:

• Total Horsepower: 3/4 min to 2.7 max
• RPM: 600-3450
• Volts: 230
• Service Factor: 1.0
• Full Load Amps: 0.5-10.5
• Flange: Square
• Frame Size: 48Y
• Exterior Color: Black
• Energy Savings: 80%
• Model Number: ECM27SQU

Features:

• Integrated Timer Interface
• On-and-Off Board Mountable Interface (kit required for off-board sold separate)
• Timer Mode
• Manual Mode
• Freeze Protection
• Auxiliary Load Capacity
• Configurable Prime Settings
• Noise Reduction Design
• Adjustable Contrast
• Power Factor Correction
• Factory Reset
• Battery Backup-Program Saver
• LCD Display with Backlight
• Ball Bearing
• TEFC (Totally Enclosed Fan Cooled)
• Rotation: CCWPE
• Single Phase</
