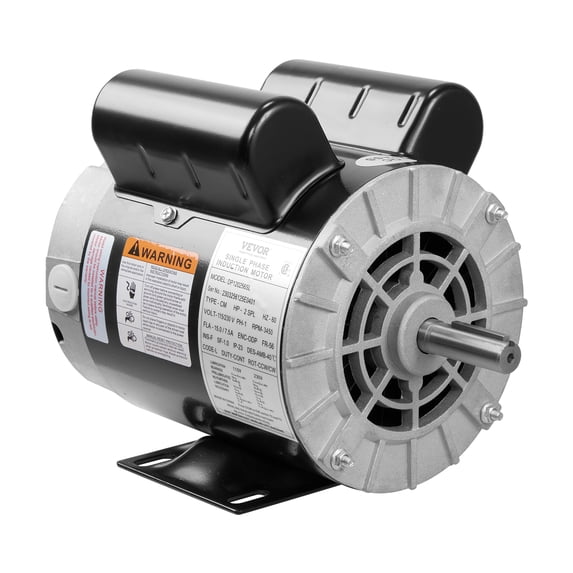

Hero image 0 of BENTISM 2HP SPL Air Compressor Electric Motor, 115/230V, 15/7.5Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, CW/CCW Rotation, 1.88" Shaft Length for Air Compressors Has Obtained CSA Certification, 0 of 9
BENTISM 2HP SPL Air Compressor Electric Motor, 115/230V, 15/7.5Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, CW/CCW Rotation, 1.88" Shaft Length for Air Compressors Has Obtained CSA Certification
Key item features
- Powerful Motor: 2HP SPL motor with 3450 RPM high speed for efficient and fast inflation.
- Dual Voltage: Operates on 115/230V with a full load current of 15.0/7.5A, suitable for various applications.
- Reversible Rotation: CW/CCW rotation direction for versatile wiring and installation options.
- Durable Frame: 56HZ frame with a 5/8" keyed shaft and 1.88" shaft length, made of high-quality steel for longevity.
- Efficient Cooling: Features a large fan for quick heat dissipation, preventing overheating and ensuring durability.
- Safety Certified: CSA certified for safety, with a protection device to prevent burnout in abnormal conditions.
- Package Contents: Includes 1 x 2 HP SPL Air Compressor Motor and 1 x Instruction Manual.
Generated by AI
Specs
- Horsepower2 HP
- Electric motor typeAir Compressor
- Electrical phaseSingle Phase
- Volts115 V, 230 V
- Maximum motor speed3450 rpm
- Amps7.5 Amps
Current price is USD$153.26$153.26/ca
Price when purchased online
- Free shipping
Free 90-day returns
How do you want your item?
Try 30 days for just $1! Choose a plan at checkout.
Ships to
Arrives by Thu, Jun 18
Sold and shipped by Walmart.com
Free 90-day returns
This item is gift eligible
Try 30 days of Walmart+ for just $1!
T&C apply. Claim offer now
About this item
Product details
Product Description
2HP SPL Air Compressor Motor
Inject powerful energy into your air compressor with BENTISM 2HP SPL compressor motor, 115/230V voltage, 15/7.5A current, 56HZ frame, 1.88" shaft length, 5/8" keyed shaft, CW/CCW dual rotation direction. A perfect addition to air compressors, industrial and commercial needs.
Powerful Motor
3450RPM high speed enables faster inflation and energy-saving efficiency.
Efficient Cooling
Dissipate heat quickly and efficiently with a large fan, preventing overheating and ensuring durability.
Safety Certification
Our motor has obtained CSA certification, demonstrating our commitment to product and consumer safety.
CW/CCW Rotation Direction
The motor can be used for both clockwise and counterclockwise rotations.
High-quality Frame
With a heavy-duty rolled steel shell design, this motor boasts high strength and durability, while operating at low noise levels.
Safety Protection
Equipped with a protection device, this motor automatically shuts down in case of abnormal conditions, preventing burnout and ensuring safety.
Specifications
Voltage: 115/230V
Horsepower: 2HP SPL
Rotation Speed: 3450 RPM
Frame Size: 56HZ
Rated Current: 15.0/7.5A
Shaft Length: 1.88"
Shaft Diameter: 5/8" Keyed Shaft
Rotation: CW / CCW
Certification: CSA
Package Content
1 x 2 HP SPL Air Compressor Motor
1 x Instruction Manual
- 2HP SPL Air Compressor Motor: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 15.0-7.5A, 115/230V, 2 Pole.
- Frame Type: 56HZ Frame, 5/8" Keyed shaft, Shaft length-1.88".
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CW/CCW, provides easier wiring operations.
- Safe & Durable: Tested with CSA certification. A rolled steel shell, fast heat dissipation and compatible keyed shaft for longtime usage.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Horsepower
2 HP
Electric motor type
Air Compressor
Electrical phase
Single Phase
Volts
115 V, 230 V
Warranty
Warranty information
One year
