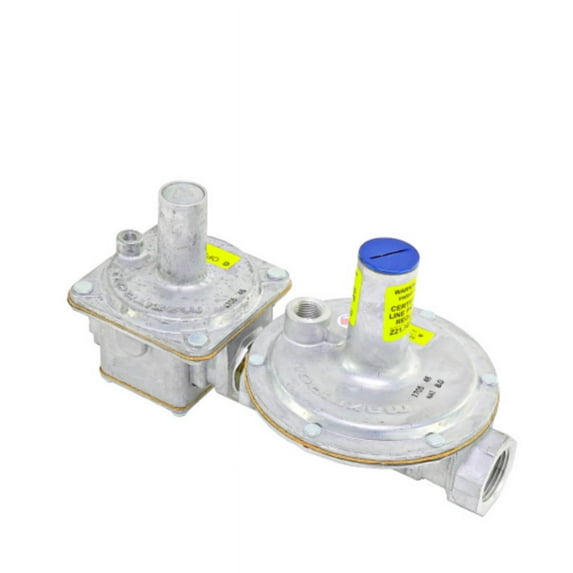

Maxitrol 325-5L600-1 - 1" 325-5LX ATTACHED TO OPD600

The Maxitrol 325-5L600-1 is a lever-acting line pressure regulator that consists of a 1” NPT pipe connection with aluminum housing material. The unit has a 7 - 11” W.C. outlet pressure spring range, 5 psi maximum inlet pressure, and 465,000 BTUH maximum load capacity. ANSI and CSA Certified The 325-L Series line pressure regulator reduces pressure to make up for the gas appliances operating pressure range. The outlet pressures can be modified by turning the adjustment screw in a clockwise direction to increase the pressure and counterclockwise to decrease pressure. Applicable gases are natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures. All 325 Series can be mounted in any position, but it should be mounted in a horizontal upright position if installed with a vent limiting device.
