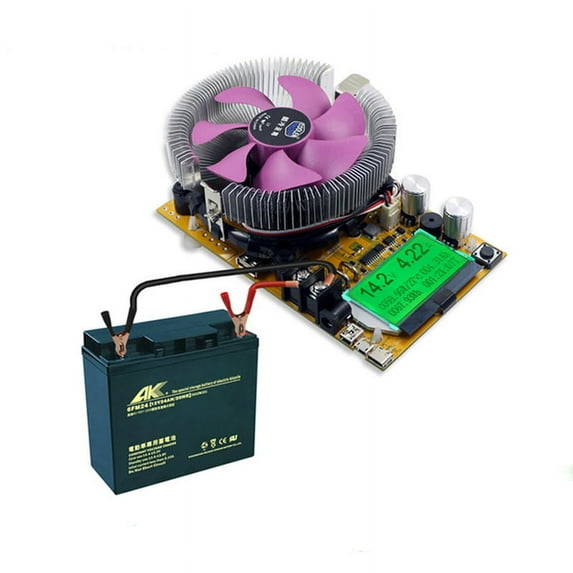

SENRISE Discharge Resistance Capacity Tester 150W/180W Multifunctional Constant Current Load Detector

Features:

Input interface / output interface: 100A high current bite screw post

Voltage measurement range: 0.00V ~ 200V, resolution accuracy: 0.01V

Current measurement range: 0.00A ~ 20A, resolution accuracy: 0.01A

Accumulated capacity range: 0 ~ 999.999Ah, resolution accuracy: 0.01Ah

Accumulated power range: 0 ~ 9999.9Wh, resolution accuracy: 0.01Wh

Power measurement range: 0000.00 ~ 150/180 W, resolution accuracy: 0.01W

Impedance measurement range: 1 ~ 999.9 ohms, resolution accuracy: 0.01 ohms

Temperature measurement range: 0 ~ 99 ° C, 0 ~ 99 ° C, resolution accuracy: 1 ° C

Maximum time: 999 hours 59 minutes 59 seconds, resolution accuracy: 1 second

Timer measurement reminder setting: countdown 24 hours at any set value

Low current standby reminder threshold parameters and timing: <2W / 0.5 hours;> 0.5W only starts timing

DC voltage in the range of 4 ~ 30V powers the measurement system

Refresh time:> 500mS / times> 500mS / times

Measurement rate: about 0.5 times / second

Over-voltage and over-current setting alarm mode: display warning interface to remind users

Overvoltage reminder setting range: 1 ~ 200V

Low voltage reminder setting range: 0 ~ 190V

Over current reminder setting range: 0.2 ~ 100A

Display type: Chinese and English display with micro power consumption LCM black font green backlight

Product size: 156mm * 96mm * 58mm

Working temperature: -10 ~ + 60 degrees Celsius -10 ~ + 60 ℃

Operating humidity: 10 ~ 80 (no doubt) 10 ~ 80 (no doubt)

Working pressure: 80 ~ 106kPa

Package includes:

1 Pc x Discharge Resistance Capacity Tester
