Solar Grid Tie Micro Inverter Aluminium Alloy 700W For Solar Panel 30V/60V 110V

Description

An Inverter Can Efficiently Turn the Direct Current Generated by Solar Panels into the Alternating Current Used by Household Appliances. This Micro Inverter Makes It Easier. Made of Fine Aluminum Alloy, This Ip65 Waterproof Inverter Has a Wide Range of Functions, Good Safety, Convenient Installation, and High-cost Performance. We Believe This Inverter Will Not Disappoint You.

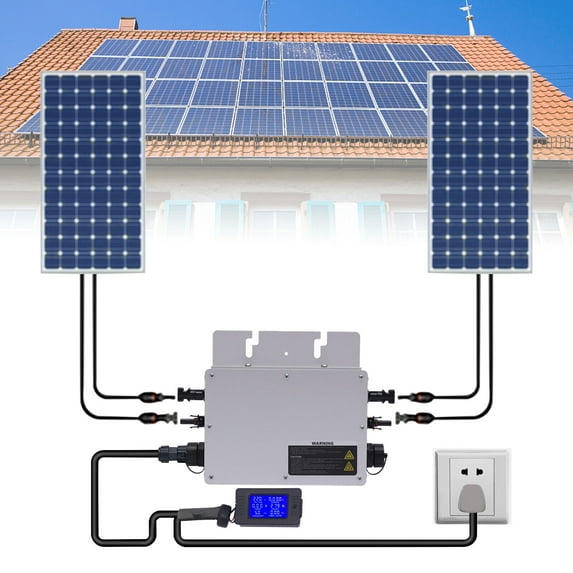

How to Use

Step 1: Install the Inverter on the Support of the Photovoltaic Panel with the Screws Provided by the Machine.

Step 2: Connect the Positive and Negative Poles of the Dc Connection Plug on the Photovoltaic Panel to the Dc Input Terminal of the Inverter.

Step 3: Open the Waterproof Cover of the Ac Output Interface of the Inverter and Connect the Ac Cable to the Ac Waterproof Plug.

Step 4: Connect the Ac Output Cable to the Ac Main Cable.

Step 5: Repeat Steps 1 to 3 to Install and Connect All Inverters.

Step 6: Connect the Ac Main Cable to the Public Grid and Start Your Green Energy Journey

Specification

Model: Wvc-700w

Color: Silver

Material: Aluminium Alloy

Power: 700w

Voltage: 110v

Plug Type: Us Standard

Maximum Input Dc Voltage: 54v

Peak Power Tracking Voltage: 22-45v

Operating Voltage Range: 17-50v

Min/Max Start-up Voltage: 22-50v

Maximum Dc Short Circuit Current: 40a

Maximum Input Operating Current: 30a

Output Peak Power: 700watt

Rated Output Power: 650watt

Rated Output Current: 6.36a

Rated Voltage Range: 80-160vac

Rated Frequency Range: 57-62.5hz

Power Factor: ＞99％

Number of Circuit Connections per String: 6

Static Mppt Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Night Time Power Loss: <1w

Total Flow Distortion: <5%

Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉

Waterproof Rating: Ip65

Cooling Method: Self-cooling

Communication Mode: Power Line Carrier

Power Transmission Mode: Reverse Transmission, Load Priority

Gross Weight: 2.48kg/5.47lbs

Net Weight: 1.63kg/3.59lbs

Product Size: 21.3*5.8*25cm/8.39*2.28*9.84inch

Package Size: 34*24*11.5cm/13.39*9.45*4.53inch

Package Included

1* Solar Grid Tie Micro Inverter

1* Power Cord

1* English Manual

Other Accessories for Installation

Notes

Please Install the Inverter Correctly According to the Instructions. If You Have Any Questions, Please Contact the Relevant Personnel.
Please Don't Dismantle the Machine. Only Qualified Maintenance Personnel Can Repair the Inverter.
Please Install the Inverter in a Place with Low Humidity and Good Ventilation to Avoid Overheating the Inverter and Remove the Surrounding Inflammable and Explosives.
When Using This Inverter, Please Take Good Care of Your Children to Prevent Them from Touching and Playing to Avoid Electric Shock.
 Please Note That Our Products Are Grid-connected, the Ac Output Port Has to Be Connected to the Home Grid in Order to Achieve Grid-connected Power Generation.
When the Input Load Is with Solar Panels, It Is Important That the Voc Voltage Is Between 30-48v. We Recommend That the Solar Panel Is Configured for 20% More Power than the Power of the Product. for Example, If the Product Is 600w, the Total Power of the Solar Panels Should Be Between 700-750w.
When the Input Load Is a Battery, We Recommend a Battery Voltage of 36v, Which Can Be Connected in Series with 3 12v Batteries. Please Note That the Positive and Negative Polarity Should Not Be Reversed When Connecting the Product. the Recommended Battery Current Is 36v/10mah for 300w, 36v/20mah for 600w, and 36v/40-45mah for 1200w.
