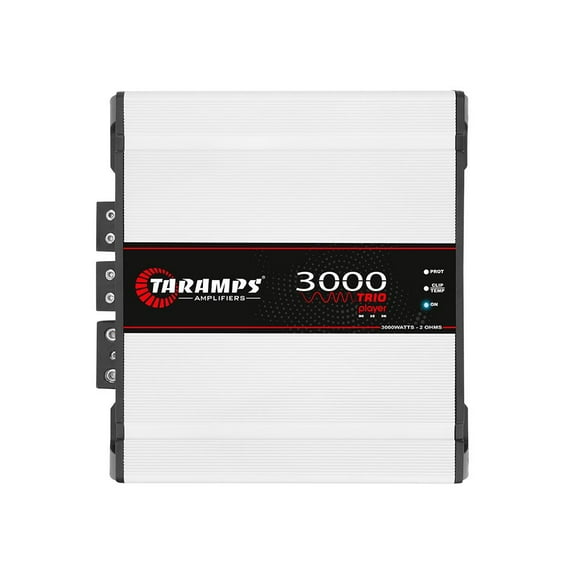

Taramps TRIO 3000 PLAYER Amplifier 2-ohm 3250W RMS - 2 Outputs

Taramp's is one of the leading brands in car audio in the world.

The 3000 TRIO amplifier is carefully developed with state-of-the-art technology, offering efficiency and performance for automotive audio systems. Considering it is intended for three-way acoustic setups, this product smoothly runs speakers, drivers, and tweeters. It has a maximum power of 3.000 watts RMS, running at a 4-ohm impedance. This amplifier features a variable Crossover and two output ways, each one with an individual gain level adjustment. The low way has a limiter with three acting levels and a BASS BOOST, while the high way has a fixed limiter.

This is an excellent deal: a top-quality, high power amp for a great price.

OPERATION CLASS: Class D
NUMBER OF CHANNELS: 01

MAXIMUM POWER LOW-WAY
@12,6 VDC – 2 OHMS: 3000W RMS
@12,6 VDC – 4 OHMS: 1920W RMS

MAXIMUM POWER HIGH-WAY
@12,6 VDC – 2 OHMS: 250W RMS
@12,6 VDC – 4 OHMS: 150W RMS

INPUT SENSITIVITY: 180mV
SIGNAL TO NOISE RATIO: >88dB

FREQUENCY RESPONSE LOW-WAY
10Hz – 700Hz (X-Over Low / High = 700)
10Hz – 1200Hz (X-Over Low / High = 1200)

FREQUENCY RESPONSE VIA HIGH
700Hz – 20KHz (X-Over Low / High = 700)
1200Hz – 20KHz (X-Over Low / High = 1200)

CROSSOVER HIGH PASS (HPF): 10Hz ~ 80Hz (-12dB/8th) Variable
CROSSOVER LOW PASS (LPF): 700Hz ~ 1200Hz (-12dB/8th) Variable
BASS BOOST: 0 ~ 10.5dB (50Hz)

LIMITERS/ANTI-CLIPPING: LOW-WAY
Selectable 1% / 5 % / 10%

LIMITERS/ANTI-CLIPPING VIA WAY
Anticlip

THERMAL MANAGEMENT: Smart Cooler (fan triggered by temperature or audio, with 3 speeds)
EFFICIENCY: 79%
INPUT IMPEDANCE: 10K ohms
OUTPUT IMPEDANCE: 2 ohms
PROTECTION SYSTEM: Output short circuit or overload (across the load output terminal to ground), low or excessive supply voltage and thermal protection
MIN. SUPPLY VOLTAGE: 9VDC
MAXIMUM POWER SUPPLY VOLTAGE: 16VDC
CONSUMPTION AT REST: 2.20A
MAXIMUM MUSIC CONSUMPTION: 152A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL: 301A
DIMENSIONS (H X W X D): 9"x 2.56"x 8.50"
WEIGHT: 5.5lb
