Hero image 0 of Treedix 6pcs 0.56'' 3-Digit LED Display Voltmeter Two-Wire DC 5V-30V LED Digital Tube Voltage Meter Voltmeter, 0 of 10

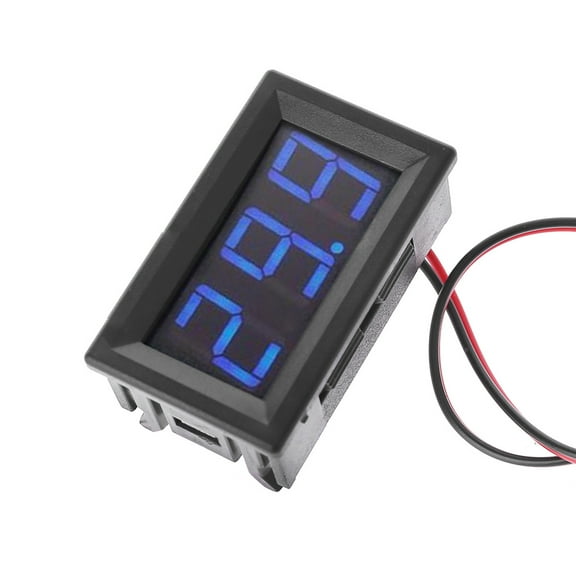

Treedix 6pcs 0.56'' 3-Digit LED Display Voltmeter Two-Wire DC 5V-30V LED Digital Tube Voltage Meter Voltmeter

(No ratings yet)

Treedix 6pcs 0.56'' 3-Digit LED Display Voltmeter Two-Wire DC 5V-30V LED Digital Tube Voltage Meter Voltmeter Treedix 6pcs 0 56 3 Digit LED Display Voltmeter Two Wire DC 5V 30V LED Digital Tube Voltage Meter Voltmeter Treedix 6pcs 0 56 3 Digit LED Display Voltmeter Two Wire DC 5V 30V LED Digital Tube Voltage Meter Voltmeter Treedix 6pcs 0 56 3 Digit LED Display Voltmeter Two Wire DC 5V 30V LED Digital Tube Voltage Meter Voltmeter

Actual Color:Green

Blue, $14.99

selected, Green, $14.99

Red, $13.99

Key item features

This voltmeter has a volume of 0.56 inches and a DC range of DC 5-30V.
With reverse connection protection, the reverse connection will not burn.
Low start operating voltage, red as low as 4.5V, green as low as 4.7V, blue as low as 5.0V.
No additional power supply is required, the tested voltage can be directly used as the power supply.
It can be used to monitor the battery voltage, grasp the battery voltage status in time, and can also be used for voltage measurement of other products.

Specs

Brand
TREEDIX
Color
Green

Current price is $14.99

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 18 - Jun 26

Sold and shipped by Treedix

3.652173913043478 stars out of 5, based on 23 seller reviews(3.7)

Free 30-day returns

About this item

Product details

Specification：
Measuring range: Red: DC 4.50-30.0V; Green: DC 4.70-30.0V; Blue: DC 5.00-30.0V
Power supply range: No additional power supply is required, the tested voltage can be directly used as the power supply, with the same range as above.
Maximum input: DC 30.0V
Note: Input voltage higher than 30V may be permanently damaged!
Error: ± 1% (error is ± 0.3V when greater than or equal to 10V; error is ± 0.10 when less than 10V)
Input impedance: > 100K ohm
Working current: Red: <23mA; Green: <18mA; Blue: <13mA
Refresh rate: about 300ms
Display type: Three digit 0.56 "LED digital tube
Display color: Red, Green, Blue (you can visit the variation.)
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm (L x W x D)
Working temperature: -20 ℃ ~ 65 ℃

Package included:
6 x 0.56'' LED Display Voltmeter with Wire

Note that the maximum input voltage of the 2-wire cannot exceed 30V, otherwise there is a risk of burning.

This voltmeter has a volume of 0.56 inches and a DC range of DC 5-30V.
With reverse connection protection, the reverse connection will not burn.
Low start operating voltage, red as low as 4.5V, green as low as 4.7V, blue as low as 5.0V.
No additional power supply is required, the tested voltage can be directly used as the power supply.
It can be used to monitor the battery voltage, grasp the battery voltage status in time, and can also be used for voltage measurement of other products.
