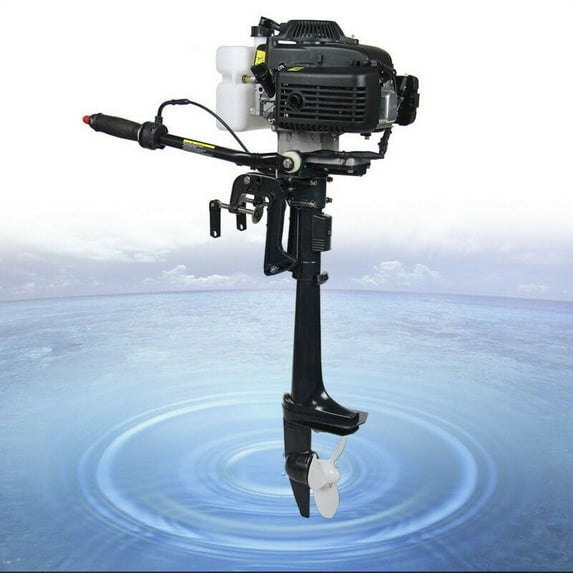

Anqidi Outboard Motor Engine 4HP 4-Stroke Fishing Boat Engine 55CC Boat Gas Engine CDI Air Cooling System 15.75" Short Shaft

Specification

• Material: Aluminum, Plastic
• Color: Black
• Type: 4 Stroke 4 Horsepower
• Shift Position: Clutch Control
• Ignition System: CDI
• Cooling System: Air Cooling
• Starting Method: Manual Start
• Refueling: No. 93 Gasoline
• Propeller Size: 3-7 1/4X7-A
• Recommended Lubricant: 4 Stroke Lubricating Oil
• Mixing Ratio: Pure Gasoline
• Trim and Tilt System: Manual Tilt
• Transmission Ratio: 2.08 (27:13)
• The Number of Cylinders: 1
• Standard Fuel Tank Capacity: Within 1.1 L/0.29gal
• Fuel Consumption: About 1L/H / 0.26gal/H
• Maximum Power: 2.8 kW /4 HP
• Maximum Speed: 4000-5000rpm
• Capacity: 55cc
• Short Shaft Length: 40cm/15.75in
• Fitted Stern Plate Height: 38-44cm/14.96-17.32inch or Less
• Recommended Load Capacity: 200-600kg/440.92-1322lbs
• Speed: 6-9km/3.7-5.6mile/h (vary depending on the environment, the water and the weight of the boat)
• Gross Weight: 13.4kg/ 29.54 lbs
• Net Weight: 9.7kg/ 21.38 lbs
• Product Size: 92*36.5*22cm/36.22*14.37*8.66in
• Package Volume: 95*42*29cm/37.40*16.54*11.42in

Package Included

• 1*4 Stroke 4HP Outboard Motor Boat Engine
• 1*English Manual
• 1*Funnel
• 1*Toolkit
• 1*Split Pin

Details

• Three-blade Propeller: The Three-blade propeller with streamlined design can reduce water resistance and provide stronger power during operation.
• Large Capacity Fuel Tank: The 0.29-gallon fuel tank can effectively reduce the number of times you have to add fuel, thus increasing your efficiency.
• Baffle: The baffle above the propeller can effectively reduce the bumps of the waves and avoid water from getting the boat board wet.

Notes

1.Gasoline is prone to oxidation and degradation when stored. Using degraded gasoline will clog the fuel line and cause starting difficulties. If the engine has not been used for more than half a month, please drain the fuel in advance.

2.Please add gear oil to the gears before using the motor and change the gear oil after the break-in period (10 hours).

3.The propeller can withstand fresh water and salt water, but after using it in salt water, you must clean it with water immediately.

4.Please store the engine upright with the engine side up, not upside down. Otherwise, the oil may flow into the engine combustion chamber and cause engine damage.

5.Please do not start the motor on the shore where there is a lack of water. Even if you want to test the motor, you should do it in the river!

6.The four-stroke outboard oil tank can only be filled with pure gasoline, and the oil tank should use special oil for four-stroke (car and motorcycle oil are both available). The oil should be filled according to the scale on the dipstick (the upper scale is the upper limit, and the lower scale is the lower limit, do not add more or less oil, add about 0.09 gal of oil)

7.Before each use of the machine, please check whether the oil is sufficient, and check the air filter before each use.

8.It is prohibited to idle in a bucket of water to break in, and idle speed is prohibited to be higher than five minutes during the break-in period! The long idle time during the break-in period may produce carbon, which will burn off the spark plug and lead to late starting difficulties.

9.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

10.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
