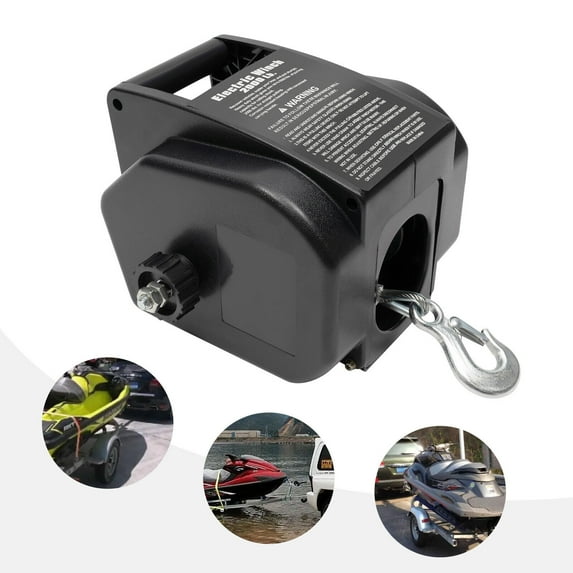

2000 LBS Boat Winch Electric Marine Winch Reversible Trailer Winch With Remote

Electric Boat Winch, Reversible Electric Trailer Winch 12V DC, Power-in, Power-out and Freewheel Operations for Boats 2000 lbs with Hand Crank

Description

Our impressive electric winch is capable of towing a 5000 lbs boat. Its all-electric drive and pure copper motor give this product strong performance, fast heat dissipation, low noise, smooth operation, and long service life, providing both efficiency and convenience in operation and making it the optimal choice for both loading and unloading boats and other hefty equipment.

Details

Steel Wire Rope: The 30.18ft steel wire rope with a welding treatment is high-strength, burr-free, and long enough to facilitate your operation without hurting your hands.

Long Power Cable: The 16.4ft battery cable and 9.84ft wired remote control cable reduce the distance limitation and improve the flexibility of use.

Application

It has a pull of 2000 lbs and is suitable for cars, trailers, trucks, yachts, ships, and marine winches.

Specifications

Color: Black

Type: Electric

Material: Steel, Aluminum, Copper, Plastic

Surface Treatment: Plastic Spraying

Motor: Permanent Magnet

Model: P2000-4

Voltage: 12V

Motor Power: 0.3KW

Gear Ratio: 465:1

Pulling Capacity: 2000LB

Working Load: 2000LB

Breaking Strength: 2400LBS

Hook Size: 1/4 inch

Battery Cable Length: 5m/16.4ft

Wired Remote Control Cable Length: 3m/9.84ft

Steel Wire Rope Size: Φ4.8mm*9.2m/0.19inch*30.18ft

Product Size: 24.5*25.6*19.6cm/9.64*10.08*7.72inch

Package Size: 39.5*29.5*25cm/15.55*11.61*9.84inch

Net Weight: 11kg/24.25lbs

Gross Weight: 12kg/26.45lbs

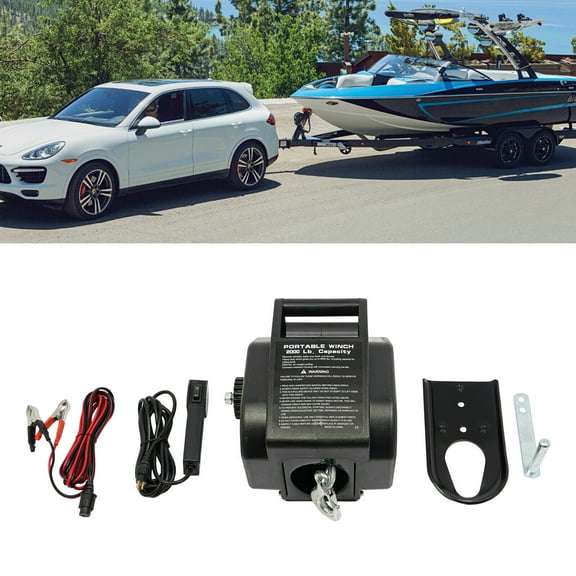

Package Included

1*Electric Winch

1*Hand Crank

1*Wired Remote Control

1*Battery Cable

1*Hanging Board

1*English Manual

Notes

Please do not overload the electric winch.
Please make sure to add lubricating oil to the gears and shaft sleeves before use to prevent winch wear caused by an oil shortage.
Before pulling, the clutch must be tightened all the way clockwise.
If you encounter a problem caused by the clutch not being tightened: 1) If the tension is too low, you cannot pull the boat. The machine will make the sound of gears falling off. 2) The marine winch will stop working regularly. 3) The cable will not be locked and the wires may slide out. 4) The winch may pull for a few seconds and then stop working. Please do not pull the boat directly after tightening the clutch. Please roll the cable in to release tension first. If this is not done, the winch can be restored to normal use.
If the electric winch is frequently used for a long time, the winch gear and shaft sleeve should be regularly checked for oil shortage, and the steel wire rope should be worn. If severe wear is found, the use should be immediately stopped to prevent danger.
