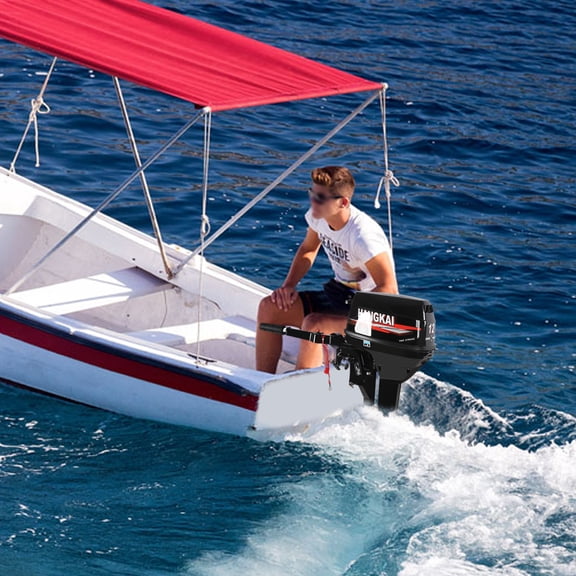

2 Stroke Outboard Motor Boat Engine Long Shaft Heavy Duty 169CC 4500-5500rpm

With a Huge Thrust, a Sturdy and Powerful Propeller, and Precise Speed Control, the Outboard Engine Is a Good Helper for Your Water Work. Its Two-stroke Motor, Flexible Steering, Easy Operation Let You Sneak up on Fish, Outdoor Adventure, Etc. with the Best Speed and Low Noise.

Features

Strong Power: 2-Stroke 12hp Engine (4500 to 5500rpm) and 8.8kw Max. Power Provide Strong Power for You to Drive Fast and save a Lot of Time and Energy.

Excellent Load-bearing Capacity: with Solid Aluminum Alloy Material and a Powerful Engine, the Outboard Engine Has a Maximum Load of 2204 Pounds to Meet Different Needs. (the Heavier the Load, the Slower the Speed)

Excellent Endurance: Low Fuel Consumption, Efficient Two-stroke Motor, and Large Capacity Fuel Tank (6.34 Gallons) Provide You with 5-6 Hours of Endurance to Meet the Needs of Short/Long Distance Travel.

Excellent Heat Dissipation: Many Cooling Holes and Water Cooling Systems Provide Excellent Heat Dissipation to Prevent the Engine from Burning out After a Long Time of Use.

Flexible Steering: Forward, Neutral and Reverse Gears, and a 360-Degree Steering Function Allow You to Flexibly Control the Direction of the Ship.

Easy Speed Regulation: Stepless Speed Change and Constant Speed Cruise Function Make It Easy for You to Adjust the Running Speed and Stable Navigation at a Constant Speed to Bring You a More Comfortable User Experience

Gear Oil Filling Method

There Is a Screw on the Gearbox, Unscrew the Screw to Add Gear Oil. Each Machine Will Be Filled with Gear Oil Before Leaving the Factory, so It Does Not Need to Be Refilled When It Is Used for the First Time. After That, Add According to Personal Use, and Check Every Ten Hours.

Application

This Outboard Motor Is Suitable for Small Ships with Different Materials(Width less than 4.9 Feet and Length less than 19.7 Inches), Such As Inflatable Boats, Iron Boats, Plastic Boats, Fiberglass Boats, and Wooden Boats. It Is Widely Used in Fishery, Aquaculture, Outdoor Exploration, Etc.

Notes

1. the Two-stroke Outboard Must Use a Mixture of No. 92 Gasoline and Two-stroke Engine Oil.

2. the Volume Ratio of Gasoline and Oil During the Running-in Period of the New Machine Is 25:1.

3. After the Running-in Period, the Volume Ratio of Gasoline and Oil Is 50:1.

4. Special Attention: Gasoline and Engine Oil Must Be Pre-mixed and Stirred Evenly, and Then Poured into the Fuel Tank.

5. the Outboard Motor Must Be Started in Water, Do Not Start the Engine on Shore.

6. Loosen the Vent Screw on the Fuel Tank Cover Counterclockwise When Starting.

7. When the Outboard Motor Is Started, the Emergency Flameout Rope Should Be Inserted, and the Other End Should Be Placed on the Wrist or Belt.

8. the Running-in Period Is About 10 Hours or a Month, and During the Running-in Period, Do Not Drive with a High Accelerator.

9. Replace the Gear Oil After the Running-in Period, and the Second Replacement Time Is After 100 Hours or About Six Months.

note:Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. (If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.

note:

1.2 stroke air-cooled machines, TCW-2 engine oil should be used for mixing. It must be the engine oil specifically designed for outboard engines.

2. Fuel mixture ratio: 25:1 within 50 hours and 50:1 after 50 hours
