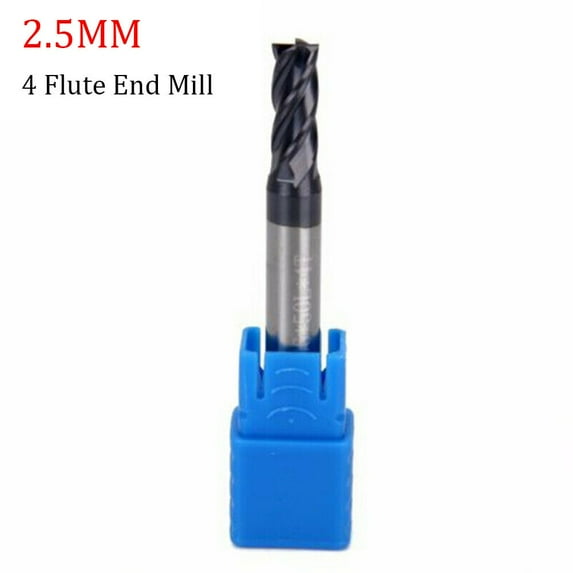

1MM- 20MM Solid Carbide End Mill 4 Teeth - AlTiN Coating Milling Cutter HPC 1pc

Features:

100% brand new and high quality
Made of high-quality materials, durable
Due to the uneven spacing and cutting edge arrangement, the vibration during milling is small and the smoothness is high
Generally used for finishing and roughing tools
The performance of HPC
Can be used for all manual or CNC milling machines/lathes/milling cutters/end milling cutters
Suitable for finishing and roughing
Solid carbide drill bits are suitable for steel, stainless steel, copper, cast iron, plastic and wood
The tool can be used as a finishing/finishing tool, roughing/roughing tool
High-performance coating: Multi-layer AlTiN coating, with high heat resistance and oxidation resistance.
Coating: The maximum application temperature is 900 degrees, no cooling is required, it is very suitable for hard materials, and the edge stability is high.
More special features: HPC (High Performance Cutting) has high performance, low vibration and smoothness due to uneven spacing and blade placement.
Applicable to: metal and non-ferrous metals, such as steel, stainless steel, copper, cast iron, plastic and wood. Suitable for all manual or CNC milling machines.
Fact: DIN 6527L end mill solid carbide (VHM), N type, four-edged (Z4), 35° helix angle.


Product parameters:

Type: Solid carbide milling cutter
Material: Carbide
Cutting direction: right hand
Flute: 4 Flute
Optional size: 1MM~20MM
Cutting diameter * handle diameter * full length:
1.0 * 4D * 50
1.5 * 4D * 50
2 * 4D * 50
2.5 * 4D * 50
3 * 4D * 50
4 * 4D * 50
5 * 5D * 50
6 * 6D * 50
8 * 8D * 60
10 * 10D * 75
12 * 12D * 75
14 * 14D * 80
16 * 16D * 100
18 * 18D * 100
20 * 20D * 100


Package list:

1 * AlTiN coated solid carbide milling cutter

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
