Hero image 0 of 5 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake, 0 of 2

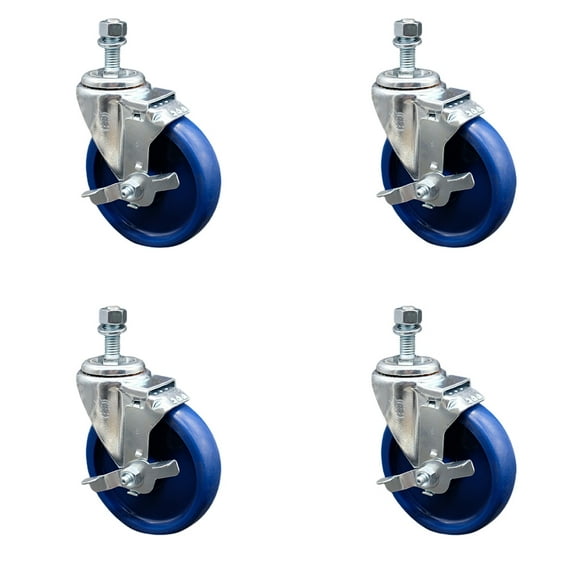

5 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake

Name: 5 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake
Brand: Service Caster
SKU: 198079717
Availability: OutOfStock

(No ratings yet)

5 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake 5 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake 4 Inch Solid Polyurethane Swivel 10mm Stem Caster Set with Total Lock Brake 4 Inch Solid Polyurethane Swivel 10mm Threaded Stem Caster Set with Brake 3 5 Inch Solid Polyurethane 10MM Threaded Stem Caster with Brake 3 Inch Solid Polyurethane 10MM Threaded Stem Caster Set 2 Brakes SCC 4 Inch Solid Polyurethane Wheel Swivel 10mm Threaded Stem Caster Set 2 Brake 3 5 Inch Solid Polyurethane 10MM Threaded Stem Caster Set with Brake 3 5 Inch Solid Polyurethane Swivel 10mm Stem Caster Set 2 Total Lock Brake 3 5 Inch Solid Polyurethane Wheel Swivel 10mm Threaded Stem Caster Set SCC

Key item features

These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
All casters feature a 10mm diameter (1.50 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Specs

Size
5" Wheel
Material
Solid Polyurethane
Brand
Service Caster
Weight
8 lb
Has casters
N
Has written warranty
No

Price when purchased online

Not Available

How do you want your item?

Not available

Report an issue with this seller

About this item

Product details

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) swivel 10mm threaded stem casters with top lock brakes, 5” diameter by 1-1/4” wide solid polyurethane wheels. Supports a total weight of 1,200lbs (300lbs/per caster). The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition. And the non-marking, non-marring polyurethane wheel is molded as one solid piece, making it free from debonding. This ensures the wheel will not flat spot, as can occur with comparable polyurethane wheels, resulting in a smooth and solid roll over long periods of time. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
All casters feature a 10mm diameter (1.50 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
