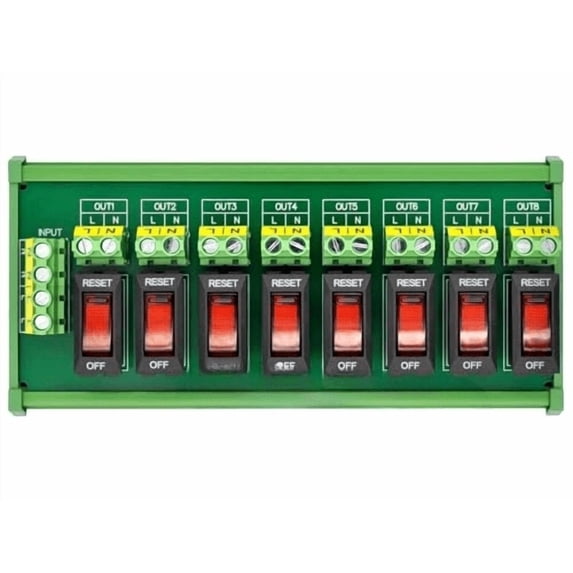

Rocker Switch Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount$$Tools & Hardware Other
Key item features
- This power distribution module features 8 channels, each equipped with a 10 Amp rocker switch thermal circuit breaker. It allows for manual control of the output state, enabling users to reset or turn off individual channels. The built-in red indicator light clearly shows the operational status of each output.
- The module utilizes a high-quality, fireproof nylon material for its DIN rail mount carrier, compatible with 35mm, 32mm, and 15mm width rails. It is constructed with FR-4 fiberglass dual copper layers PCB for reliable performance. The terminal blocks are made of brass for pin headers and cages, with steel screws.
- This module is designed for power distribution applications requiring individual circuit protection and control. It is suitable for use in electrical systems where multiple circuits need to be managed and protected from overloads. The DIN rail mount design facilitates easy installation in control cabinets and panels.
- The module features individual 10 Amp rocker switches for each of the 8 channels, providing a clear and tactile way to control power. A built-in red indicator light on each switch visually confirms the output status. The DIN rail mounting system ensures a secure and organized installation.
- The circuit breakers are thermal overload protectors designed for durability. Regular inspection of connections and ensuring the DIN rail mount is secure will contribute to long-term reliability. The module is built with robust materials to withstand typical operating conditions.
Specs
- Amps40 Amps
- Volts250 V
- BrandUnbranded
- Has nrtl listing certificationN
How do you want your item?
About this item
Product details
Rocker Switch Thermal Circuit Breaker Overload Protector 8 Channel Power Distribution Module DIN Rail Mount 1, Input voltage AC 125/250V 50/60Hz. Maximum total input current 40A(one position terminal block maximum current 20A). 2, Maximum output current 10A(one channel). Maximum total output current 40A. 3, 10Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off. 4, Terminal Blocks: Pitch 7.62mm/0.3 inch, Wire range 26AWG to 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB. Input voltage AC 125/250V 50/60Hz. Maximum total input current 40A(one position terminal block maximum current 20A). Maximum output current 10A(one channel). Maximum total output current 40A. 10Amp rocker switch thermal circuit breaker overload protectors, you can manually set the switch output state RESET or OFF. The switch has a built-in red indicator light, when the output normal indicator is on, the output disconnect indicator is off. Terminal Blocks: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel,Cr3+ Zn plated. Pin header and Cage - Brass. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. FR-4 fiberglass dual copper layers PCB.
- This power distribution module features 8 channels, each equipped with a 10 Amp rocker switch thermal circuit breaker. It allows for manual control of the output state, enabling users to reset or turn off individual channels. The built-in red indicator light clearly shows the operational status of each output.
- The module utilizes a high-quality, fireproof nylon material for its DIN rail mount carrier, compatible with 35mm, 32mm, and 15mm width rails. It is constructed with FR-4 fiberglass dual copper layers PCB for reliable performance. The terminal blocks are made of brass for pin headers and cages, with steel screws.
- This module is designed for power distribution applications requiring individual circuit protection and control. It is suitable for use in electrical systems where multiple circuits need to be managed and protected from overloads. The DIN rail mount design facilitates easy installation in control cabinets and panels.
- The module features individual 10 Amp rocker switches for each of the 8 channels, providing a clear and tactile way to control power. A built-in red indicator light on each switch visually confirms the output status. The DIN rail mounting system ensures a secure and organized installation.
- The circuit breakers are thermal overload protectors designed for durability. Regular inspection of connections and ensuring the DIN rail mount is secure will contribute to long-term reliability. The module is built with robust materials to withstand typical operating conditions.
