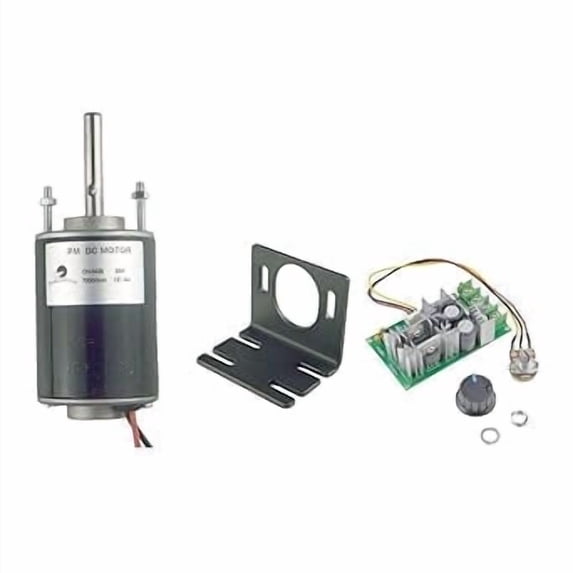

CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with Bracket
CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with Bracket
Hero image 0 of CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with Bracket, 0 of 7
CHANCS

CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with Bracket

(No ratings yet)
CHANCS High Torque High Power CH-3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with BracketCHANCS High Torque High Power CH 3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with 20A PWM DC Motor Speed Controller with BracketCHANCS Permanent Magnet DC Motor CH 3420 24V DC 7000RPM Hollow Shaft for Circular SawCHANCS 30W Permanent Magnet DC Motor CH 3420 24V 7000RPM CW CCW Reversible Electric Gear Motor High Speed Low Noise 20A PWM DC Motor Speed ControllerCHANCS PermWanent Magnet DC 24v 7000RPM Motor 30W CW CCW Reversible Electric Gear Motor High Speed DC Adjustable Speed Motor Mounting Bracke Fixed SeCHANCS Permanent Magnet DC Motor CH 3420 24V DC 7000RPM Hollow Shaft Seat Bracket for Circular SawCHANCS Permanent Magnet DC Motor CH 3420 24V DC 7000RPM Hollow Shaft with 20A PWM DC Motor Speed Controller with BracketCHANCS 30W Permanent Magnet DC Motor CH 3420 24V 7000RPM CW CCW Reversible Electric Gear Motor High Speed Low Noise DIY Generator DC Adjustable SpeedCHANCS Mini Electric Permanent Magnet Motor CH 3420 24V DC 7000RPM with 20A PWM DC Motor Speed Controller with BracketCHANCS High Torque High Power CH 3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor with Fixed SeatCHANCS Mini Electric Permanent Magnet Motor Motors Mounting Bracket Black CH 3420 24V DC 7000RPM Minor Shaft Upgrade MotorCHANCS Mini Electric Permanent Magnet Motor CH 3420 24V DC 7000RPM Minor Shaft Upgrade MotorCHANCS High Torque High Power CH 3420 24V DC 7000RPM Common Shaft Low Noise Electric Gear Motor
Actual Color:Common Shaft
Model:MOTOR+Bracket+PWM

Key item features

  • *The specification of motor: Rated Voltage: DC 12V, Unloaded Speed: 3500RPM, Load Speed: 2400RPMï¼› Rated Voltage: DC 24V, Unloaded Speed: 7000RPM, Load Speed: 5100RPM;Rated Current:2.42-3.37A; Rated power : 30W; Shaft: Common Shaft, Size:51*70mm; Shaft diamater:8mm; Shaft length: 45mm, Rotation:CW/CCW.
  • *The specification of bracket: Length: 57.5mm; Width:41mm; Height: 51mm; The measured size data may be subject to some errors.
  • *The specification of the speed controller: Input Voltage: DC 10V-DC 60V (Ultra wide working voltage),Output voltage: linear under load, Control Power: 0.01-1200W,Rated Current: 10A, Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.),PWM Duty Cycle: 0%-100%, PWM Frequency: 25Khz,Product Size(L x W x H): 77*45*28mm
  • Application:Used for electric fan, shredder, sprayer, small cutting machine, small table saw, money counter, printer, etc.
  • *Package : 1 x DC Motor, 1 x Speed Controllers,1 xBracket
Current price is $39.99
Price when purchased online
  • Free shipping
  • Free 30-day returns
