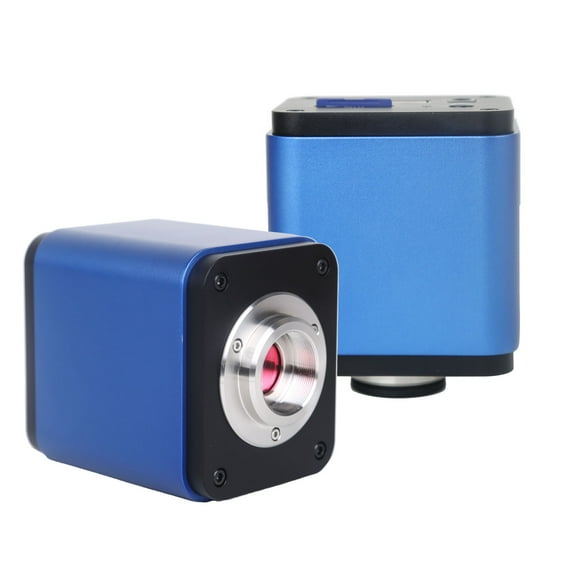

AmScope 1080p HDMI Digital Camera for Standalone and PC Imaging New
Key item features
- 1080p 60fps HDMI digital microscope camera with C-mount
- Standalone operation with built-in recording and video playing back features using SD card
- USB connectivity for PC control and capture up at 30fps
Specs
- Resolution1080p
- BrandAmScope
- Mem card typeSecure Digital
- Megapixels2 MP
How do you want your item?
About this item
Product details
The HD200VP-UM with video playback features is an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 2MP still images. The camera can be used as a standalone imaging system, or with a computer. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps, while recording directly to a Secure Digital card at 25fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.
As an alternative solution, connect the camera to a computer via USB for remote software control. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Specifications:
- Sensor: Sony IMX236 (color)
- Sensor Type: CMOS
- Sensor Size: 5.5x3.4mm (1/2.8" class)
- px Size: 2.8
- Still Resolution: 2MP
- Video Resolution: 1080p
- Frame Rate: 60fps @ 1920x1080 (HDMI), up to 30fps @ 1920x1080 (USB), 25fps @ 1920x1080 (SD)
- Sensitivity: 510mV @ 1/30s
- Connectivity: USB, HDMI
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
- Mounting Sizes: C-mount
- Power: 12V, 1A
-
Software Specifications:
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
- Advanced software for Windows:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- gives your computer screens the same field of view as your microscope's eyepiece
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances - Lifetime free software upgrades
-
Contents:
- One HD Digital Camera
- One USB Mouse
- One USB Cable
- One HDMI Cable
- One SD Card
- One Power Adapter
- One CD with Software and User's Instructions
- 1080p 60fps HDMI digital microscope camera with C-mount
- Standalone operation with built-in recording and video playing back features using SD card
- USB connectivity for PC control and capture up at 30fps
