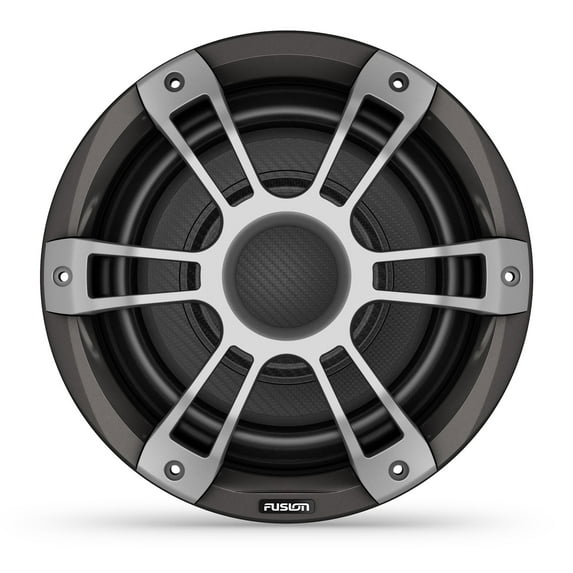

Fusion SG-S103SPG 10" Speaker 600 Watt Sub-Woofer Sport Grille Gray

Fusion Signature Series 3i Marine Subwoofers 10" 600-watt Sports Gray Marine Subwoofer

Model: 010-02774-21

• Crystal-clear premium sound quality is suited for the marine environment.
• Water-resistant connectors provide simplified installation and superior protection.
• The rigorously tested marinized design has an IP65 rating.
• Built to last season after season, the Signature Series 3i subwoofers include a supported 3-year .

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year .

This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Specifications
GeneralPhysical dimensions (diameter x depth)10.83" x 6.77" (275 x 172 mm)Weight11 lbs (4.98 kg)Water and dust ratingIP65Peak power (Watts)600 wattsRMS power rating (watts)300 wattsSensitivity (1 watt @ 1 metre)86 dBMagnetic structure68 ozFrequency response30 Hz—2 kHzNominal impedance4 ohmRecommended amplifier power (watts RMS)50—600 wattsLED lightingNALED supply voltageNALED load current @14.4 VDC (max)NAOperating temperature range32—122 degrees F (0—50 degrees C)Voice coil diameter2"Cone materialPolypropylene cone with rubber surroundCompass-safe distance205" (520 cm)Subwoofer connectionFlying lead with water-resistant 2-way connector, 5.9" (150 mm)LED connection (sports style with LED models only)NA3 yearsMounting DimensionsMounting diameter clearance8.78" (223 mm)Mounting depth clearance5.24" (133 mm)Optimum enclosure recommendationsSealed enclosure volume (fully filled with absorption material)0.95 cubic ft (27 L)Ported (vented) enclosure volume (lined with absorption material)1.6 cubic ft (45 L)Port diameter 4.1" (104 mm)Port length10.43" (265 mm)
What's in the Box:

• Signature Series 3i Marine Subwoofers 10" 600-watt Sports Gray Marine Subwoofer
• 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2")
• Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
• Documentation
