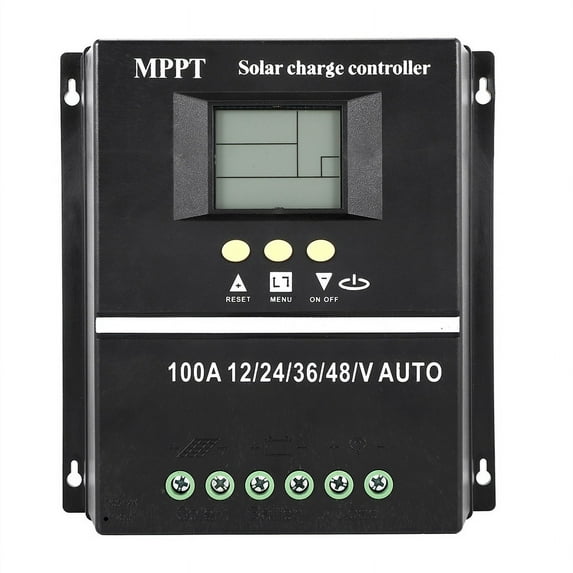

PWM 100A 12V 24V 36V 48V AUTO Solar Panel Charge Controller Solar PV Battery Charger with LCD MPPT Solar Controller

Description of charging protection
When using a 12V battery, the boost charging voltage of the battery is higher than 14.8V, and it is converted to a floating charging voltage of 13.8V.
When using a 24V battery, the battery boost charging voltage is higher than 29.6V, and it changes to a float charging voltage of 27.6V.
When using a 36V battery, the battery boost charging voltage is higher than 44.4V, and it changes to a floating charging voltage of 41.4V.
When using a 48V battery, the battery boost charging voltage is higher than 59.2V, and it changes to a floating charging voltage of 55.2V.
Note: Please connect the battery to the controller first, and then the photovoltaic panel to ensure that the battery voltage is higher than (12V battery is higher than 10V; 24V battery is higher than 20V; 36V battery is higher than 30V; 48V battery is higher than 40V), otherwise it will cause voltage Identification error.
Colour:black
Material:plastic
type: 100A

Package Contents:
1 x Solar MPPT Controller

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
