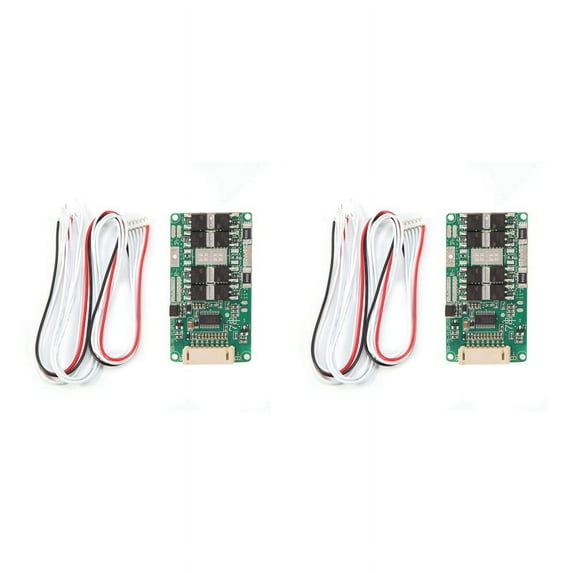

2X 7S 24V 18A Lithium Charging Protection Board PCB Common Port for Electric Tools/UPS Power Bank

Discharge
Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 18A
Instant protection current: 50A
Overcurrent recovery conditions: charge recovery or disconnect load
Short-circuit recovery conditions: charge recovery or disconnect load
Charge
Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 15A
Charger voltage: 30V (recommended)
Working power consumption: less than equal 30uA
Main circuit conduction internal resistance: less than equal 20mohm
Temperature range: -40 to 80℃
Wire break protection: Yes
Wire Length: 40cm

Package Contents:
2 x 7S 24V 18A Li-ion Lithium 18650 Battery Protection Board(Due to different product batches, the appearance may be different, but the function is the same)

Only the above package content, other products are not included.
