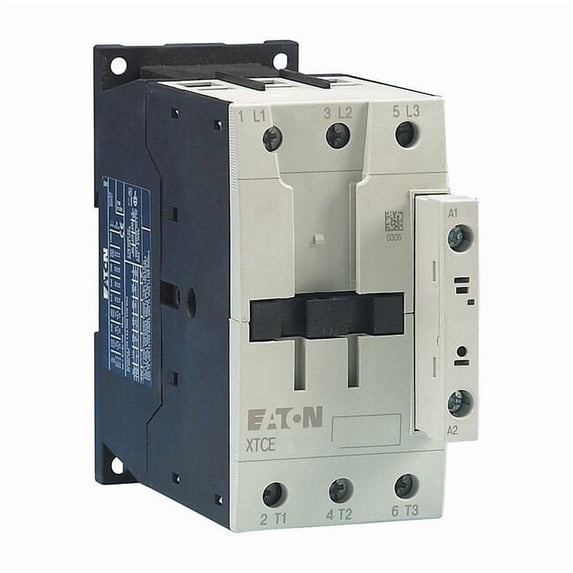

IEC Magnetic Contactor, No Auxiliary Contacts, 24V AC, 3 P, Non-Reversing, Screw

The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic switch with a 24V AC coil. Rated for operation within the specified IEC standards, it is rated for continuous operation at currents up to 65 A (inductive) and 98 A (resistive), and rated for use at voltages up to 690V AC. It does not include auxiliary contacts and uses screw terminals, with mounting compatible with DIN rail mounting or panel installation as specified. - Coil voltage: 24V AC - Action: Non-Reversing - Poles: 3 - Auxiliary contacts: does not include auxiliary contacts - Frame/Series: Frame D; Series XT - Mounting style: DIN Rail, Panel - Electrical connection: Screw terminals - Maximum voltage rating: rated for use at voltages up to 690V AC - Frequency: 50/60 Hz - Enclosure / IP rating: No Enclosure; IP20 - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947 - Mechanical operating durability: tested for mechanical durability up to approximately 10 million cycles under standard conditions - Operating temperature: -13°F to 122°F - Dimensions: Width 2.17 in; Height 4.09 in; Depth 5.78 in - Mounting details: Mounting hole diameter 0.16 in; Hole distance (Height) 4.13 in; Hole distance (Width) 1.77 in
