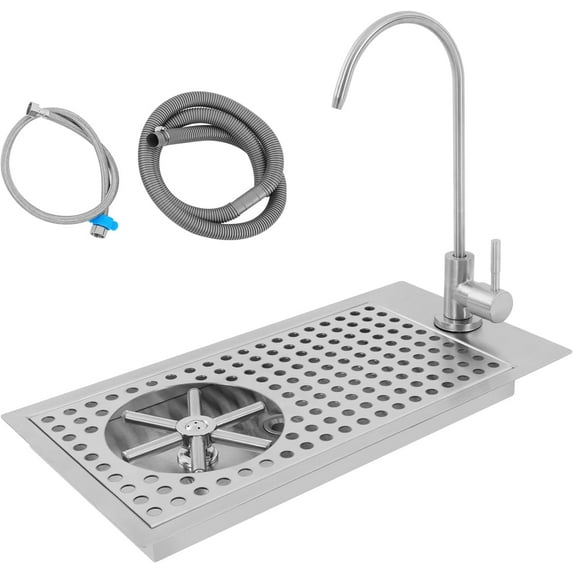

Miumaeov Cup Washer Sink with Faucet, Stainless Steel Glass Rinser with Drain Drip Tray Recessed Pitcher Rinser with Drain Pipe & Inlet Pipe

Application

The glass rinser is suitable for all types of cups, including drinking glasses, coffee cups, etc. It is suitable for homes, restaurants, bars, bubble tea shops, coffee shops, hotels, pubs, etc.

Package Included

1* Cup Washer

1* Clean Faucet

1* Drain Pipe

1* Inlet Pipe

Other Accessories for Assembly

Specification

Material: 304 Stainless Steel

Color: Silver

Process: Wire Drawing

Style: Modern

Assembly Required: Yes

Mounting Type: Embedded Installation

Thread Interface Specification: G1/2

Clean Faucet Interface Specification: 1/2''

Thickness: 1.2mm/0.05in

Opening Size: 37.5*18cm/14.76*7.09in

Drainage Pipe Length: 1.5m/4.92ft

Inlet Pipe Length: 80cm/31.5in

Product Size: 39*20*28.5cm/15.35*7.87*11.22in

Embedded Height: 2.6cm/1.02in

Faucet Height: 25cm/9.84in

Net Weight: 2.38kg/5.25lbs

How to Install

1. Make a suitable installation opening on the countertop.

2. Put the cup washer sink in.

3. Connect the bottom water outlet to the water outlet pipe.

4. Tighten the screw.

5. Connect the cup washer to the water inlet.

6. The installation of the cup washer is completed.

7. Take out the faucet.

8. Twist out the bottom accessory.

9. Install the faucet in the appropriate position.

10. Install the nut firmly at the bottom.

11. Connect the clean water pipe (not included).

12. Installation completed.
