Gantch 433MHz DC 12V 1CH Wireless Remote Control Switch | EV1527 Learning Code Relay Receiver Module | Momentary/Toggle/Latched for Gate, LED, Pump, Car Alarm LOCK 2-button remote

Description:

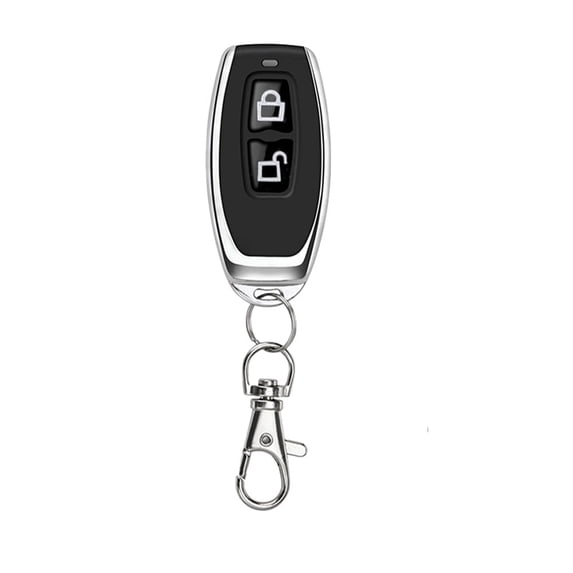

Product Type: 1 CH Wireless Remote Switch Receiver + 2-Button Transmitter
Coded System: 1527 Learning Code
Working Mode: Momentary, Toggle, Latched and Time Delay Mode.
Modulation Mode: ASK
Operating RF Frequency: 433MHz
Input Voltage: 12 V
RF working mode: Superheterodyne
Receiver sensitivity: > 97 dbm
Transmitting distance: > 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code
Working mode: Momentary, toggle, latched, time delay (5s ,10s ,15s )
Output terminal: NO , NC , COM
Dimension of PCB: 35 x 30 x 18 mm (L,W,H)
Remote control battery: 2 x 3 V CR2016 button batteries
Working mode：
Momentary: Press the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle: Press once the remote button , the relay connects , press the remote button again , the relay dis-connects .
Latched: Press the remote button A, the relay connects, press the remote button B, the relay dis-connect.
Time delay mode: Press the remote control button , the relay connects , from when release the remote button ,
After 5s or 10s or 15s , the relay disconnect automatically .
Reset function :
Clear all matched remotes.When the data is cleared,all remote control can't make receiver work.
Setting reset:
After pressing the receiver's learning button 8 times,the receiver clears all remote control data in its memory.When the receiver's LED light flashes,the reset function is complete.
