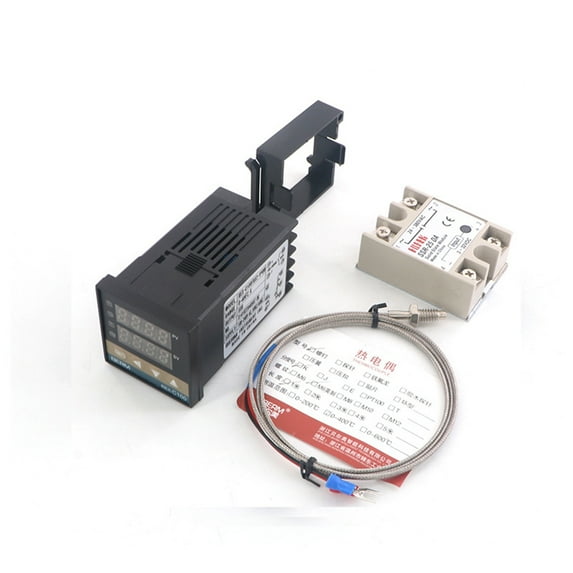

AC100-400V REX-C100 SSR DN Short Temperature Controller with Solid State Relay K Type Thermocouple Thermostat Set Measuring 0-400℃

Feature:

1. Features: This multifunctional controller has a special microprocessor switching power supply and SMT.
2. Wide range of applications: It can be widely used in electric power, chemical industry, injection molding, food, incubator, oven and other equipment.
3. Durable: The probe is made of stainless steel material shell and resin sealing treatment, waterproof and rust-free, and has a long service life.

Description:
Product name: Temperature Controller

REX-C100FK02-V x DN Temperature Controller:

Measurement accuracy: ±0.5%FS
Resolution: 14 bit
Sampling period: 0.5 seconds
Power supply: AC100-240V 50/60HZ
Detection temperature range: 0～400℃

K Thermocouple Probe Cable:

Length: 1M
Sensor diameter: 4.5mm
External Shield: Insulating Shield

Solid State Relay:

Output Voltage Range: Standard Type
Output current: 25A/40A optional
Input voltage: DC 3-32V
Output voltage: 24-380V AC
Note: A heat sink (not included) must be installed with a load current above 10A, and thermal silica gel must be coated between the relay base plate and the heat sink.

Packing list:
REX-C100FK02-V x DN temperature controller x 1
REX-C100FK02-V x DN temperature controller instruction x 1
Type K thermocouple (1m) x 1
Solid state relay x 1
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
