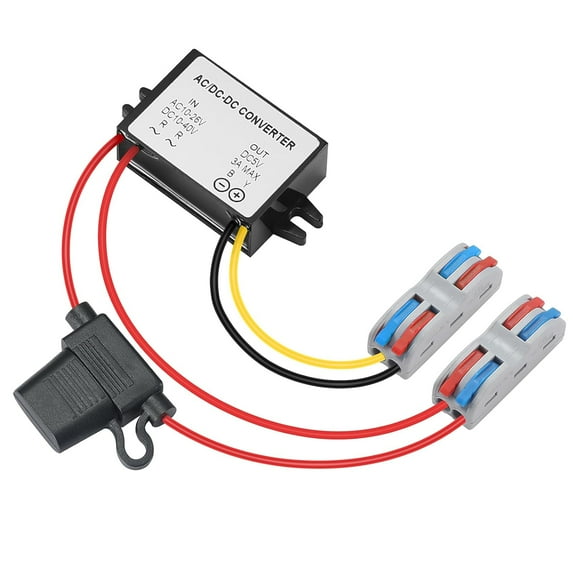

YBBOTT AC DC 10V-40V to DC 5V 3A 15W Converter Voltage Regulator for CNC Equipment Switch Photovoltaic Panel etc

Product Parameters: Input voltage: AC 10V-26V or DC 10V to 40V Transfer efficiency: 95% Input line: 15 to 16 CM, R+ B- Output voltage: DC 5V Output: 3A MAX Maximum output: 15W MAX No load adjustment rate: 1% Load adjustment: 2% Idle dissipation: ≤20 MA Ripple wave: 300 mVP-P Output line: 15 to 16 CM, Y+ B- Working temperature: -20 to 65° Storage temperature: -40 to 85° Working humidity: 10% to 90% RH Short circuit protection: YES Overtemperature protection: YES Overcurrent protection: YES Anti-connection protection: YES Heat dissipation method: Natural heat dissipation Attention: 1.The products are stored in a dry and cool place with a temperature between 40℃ and 80℃, avoiding contact with corrosive substances and staying away from flames and heat sources 2.Do not use the device near a heat source, such as a fire or heater 3.Do not connect the input line to 220V electricity 4.Do not put the product in fire or heat it 5.Do not short the positive or negative poles of the product with wires or other metal objects 6.It is forbidden for non professional personnel to disassemble and repair the product by themselves CAUTION: The load connected to the output of the converter should not exceed the specified maximum load; Any higher load will damage the buck converter
