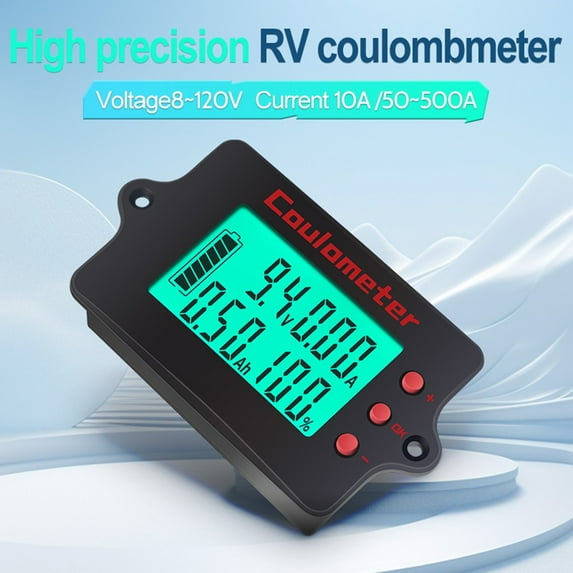

Battery Monitor With Shunt Power Voltmeter Display

Features:

ABS Housing: Made from industrial-grade ABS, featuring impacts resistance and high-temperature resistance, ensurings greater safety and reliability. Silicone button design for comfortable use.

Precise Measurement: Equipped with a 32-bit microcontroller chip, enabling real-time capacity detection for accurate data. Voltage and current values can be fine-tuned in real-time, with support for display of remaining battery life.

Bidirectional Current Detection: Bidirectional current detection is easily achievable during charging and discharging without changing the wiring direction.

USB Interface Design: Features a USB interface connection design for convenient wiring. Simple wiring with plug-and-play functionality.

Memory Function: Can be filled or cleared via buttons, without affecting direct charging and discharging measurements.

Pure copper shunt: The shunt is made of high-conductivity, low-heat-generating pure copper material. It has low self-consumption and does not consume excessive battery power in standby mode, ensurings accurate sampling precisions.

Wide applications: Ideals for applications requiring monitoring of output voltage and current, as well as battery charging and discharging. Suitable for RV power monitoring, outdoor power systems, electric bicycles monitoring, automotive battery monitoring, battery testing, photovoltaic system testing, power supply testing, and more.

Specifications:

Material: ABS

Display: LCD

Voltage measurement range: 8-120 VDC

Current measurement range: 0.03-100 A (100 A shunt)

Capacity measurement range: 0.1-999 Ah

Power measurement range: 0.1-1 kW

Timing measurement range: 0-1000 h

Voltage accuracy: ±1%

Current Accuracy: ±1%

Capacity Accuracy:
