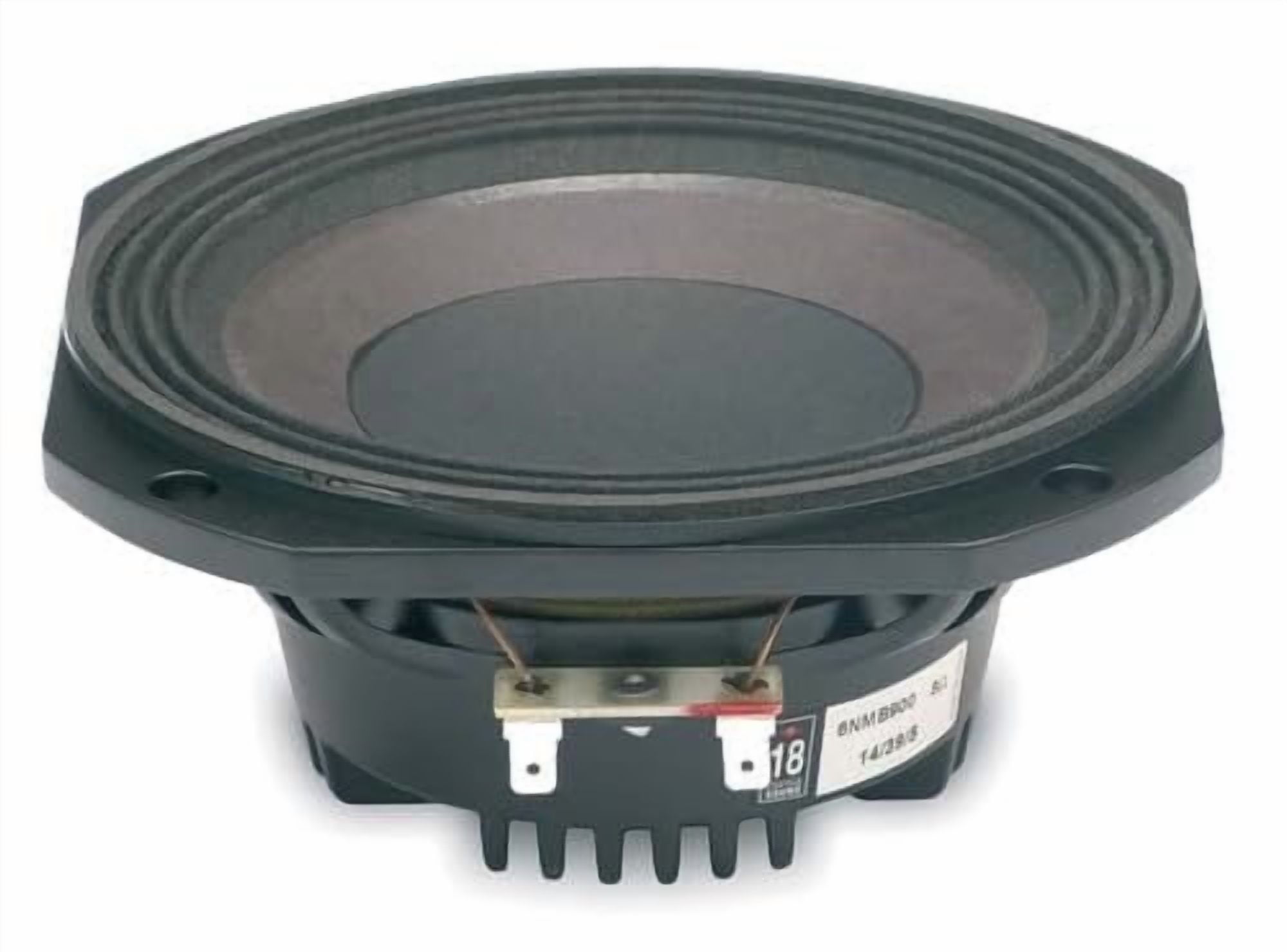

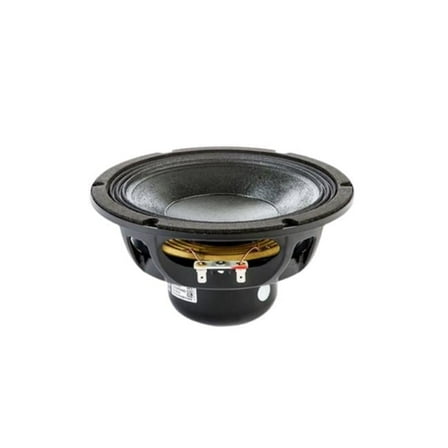

Eighteen Sound 6NMB900-8 Super 6.5-inch MIDBASS Pro Audio Components Speaker Driver for Motorcycle Car Audio Applications 8-Ohms

Overview

The Eighteen Sound 6NMB900-8 is a state-of-the-art 6.5 inch neodymium midbass speaker, known for its exceptional performance in mid-low frequency reproduction. A descendant of the 6NMB420 model, it is perfectly tailored for high intelligibility in system designs. This speaker is ideal for use as a mid-bass in line array systems or multiple-way systems, offering great linearity and minimized distortion. Its external neodymium magnet assembly ensures high flux concentration and effective heat exchange, while the innovative design minimizes resonance in mid-range frequencies, offering a high level of performance and reliability even in humid environments.

Features

• 97 dB SPL 1W / 1m average sensitivity


• 44 mm aluminum voice coil


• 200 W AES power handling


• Neodymium magnet assembly for high flux concentration


• Single Demodulating Ring SDR for lower distortion


• Weather-protected cone and plates


• Active Cooling System for improved heat dissipation


• Suitable for line arrays and compact two-way applications.

Specifications

• Nominal Diameter: 152 mm 6 inches


• Impedance: 8 Ω, Minimum Impedance: 6.0 Ω


• Power Handling: Nominal Power: 200 W, Continuous Power: 260 W


• Sensitivity: 97.0 dB


• Frequency Range: 200 - 7000 Hz


• Voice Coil Diameter: 44 mm 1.75 in, aluminum winding


• Surround Shape: Triple roll


• Cone Shape: Curvilinear


• Magnet Material: Neodymium


• Cone Treatment: Weather protected


• Recommended Enclosure: 6.0 dm³ 0.21 ft³


• Resonance Frequency: 95 Hz


• Xmax: 3.0 mm


• Net Weight: 1.25 kg 2.76 lb


• Dimensions: Overall Diameter: 162 mm, Depth: 73 mm
