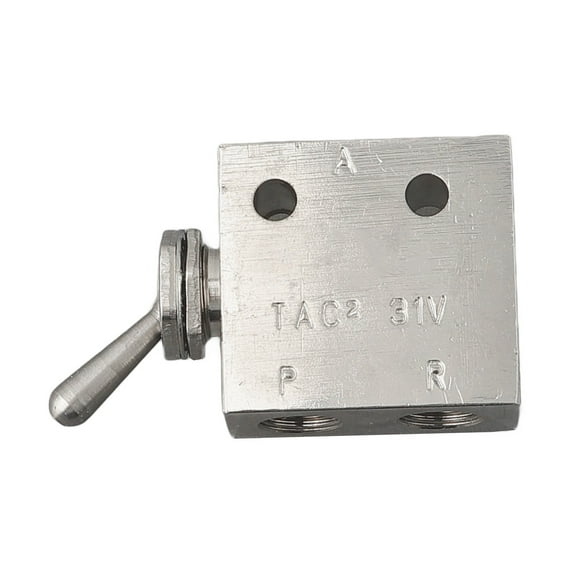

Tac2-31V 2 Position 3Way Rectangle Mechanical Toggle Lever Air Pneumatic //Valve

Describe
for TAC is a small component for total air pressure control, and is a trade name named after the first letter of (Tiny Air Components for Total Air Control).
The for TAC series iludes almost all small air valves and all peripheral components. It is possible to simplify the of the small cylinder and to construct a simple air control circuit.

Specifications:
Product Name :Pneumatic Button Valve
Model: TAC2-31V
Type: 2 Position 3 Way
mode: Toggle lever, hold type
Number of ports: 3-port /NO common type
Size: as shown
Use fluid: 0-0.9MPa
Guaranteed pressure: 1.35MPa
Use temperature range (environmental medium and use fluid): 0-60 ℃
for Sonic conduction C: 0.36 dm³/(s-bar)
Effective flows area ( value): 1.8 (0.08) mm²
Installation direction:
Maximum operating frequey: 5Hz
Filling oil: need
Color: Silver Tone
Material: Metal

Package Content
1* Pneumatic Valve
