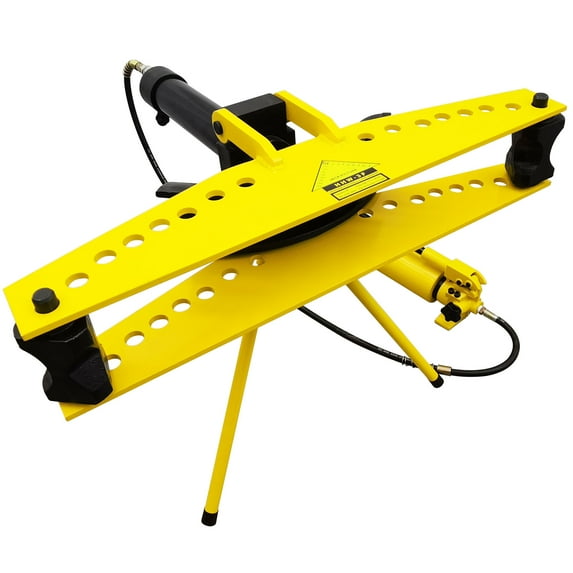

Hero image 0 of Hydraulic Pipe Bender with Separable Manual 20 Tons Split Type Pipe Bender Tool for plumbing only, 0 of 13

Maisutseb

Hydraulic Pipe Bender with Separable Manual 20 Tons Split Type Pipe Bender Tool for plumbing only

(No ratings yet)

Key item features

Manual tube pipe bender adopts split structure, which is easy to install and does not take up space. Capable of bending angles from 0° to 90° on pipes ranging from 1/2”to 4”, one molding, easy to operate, greatly improve production efficiency.
Hand pump with 1.7 meter hose allows operation from a distance, increasing flexibility and safety. Triangle bracket design, less effort for stable support and easier for tube bending.
Metal tube bending machine, by adjusting the relative distance between the two supporting iron blocks, the bending amplitude of the object to be bent can be flexibly adjusted to meet different bending requirements, strong hardness, high precision.
Steel bar bending machine, higher strength, better seal, good stability, long service life, safe from oil leakage, can ensure the accuracy requirements in the working process. When the liquid in the cylinder plays the role of transmitting force, the pressure is high and the flow rate is large, which can provide a large torque.
Round pipe bender, thickened design, smooth edge grinding, and connection with the bend mouth.
Steel bar bending machine, dies are cast with ductile iron, high strength, good toughness and plasticity, long-term use without deformation and cracking, higher strength than ordinary gray cast iron, not easy to break.

Specs

Brand
Maisutseb
Weight
206.13 lb

Current price is $999.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Introduction:
These bender and hand pump sets are for precision cold bending of thick-walled pipes (galvanized pipe, welded pipe, seamless steel pipe, gas pipe, and so on). It can bend round pipes with a maximum wall thickness of 0.2". It adopts split structure, fast and easy to setup on the jobsite, which is easy to install and does not take up space, widely used in all walks of life. The product design is simple, easy to use, no electricity, only manual operation can complete the work.

Product Parameters
Model: HHW-3F
Capacity: 20ton
Crimp range: Φ0.84"-Φ3.48" (Φ21.3mm-Φ88.5mm)
Max. stroke: 12.6" (320mm)
Pipe wall thickness: 0.1"-0.2" (2.75-5mm)
Bending formers: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3"
Max bending Angle: 90°
Package size: 39.76"*18.11"*15.35"(101cm*46cm*39cm)
Net weight/Gross weight: 206.13LBS(93.5kg)/244.71LBS(111kg)

Note: This machine is not suitable for tubes with wall thickness less than 0.1"(2.75mm) or greater than 0.2"(5mm); Not applicable to square tubes; Not applicable to stainless steel pipe, please be sure to read it before buying!

Item Included(056879)
Pipe Bending Machine *1
Fabric gloves *2
Hex wrench *3
Sealing ring *1
Dies *8

Manual tube pipe bender adopts split structure, which is easy to install and does not take up space. Capable of bending angles from 0° to 90° on pipes ranging from 1/2”to 4”, one molding, easy to operate, greatly improve production efficiency.
Hand pump with 1.7 meter hose allows operation from a distance, increasing flexibility and safety. Triangle bracket design, less effort for stable support and easier for tube bending.
Metal tube bending machine, by adjusting the relative distance between the two supporting iron blocks, the bending amplitude of the object to be bent can be flexibly adjusted to meet different bending requirements, strong hardness, high precision.
Steel bar bending machine, higher strength, better seal, good stability, long service life, safe from oil leakage, can ensure the accuracy requirements in the working process. When the liquid in the cylinder plays the role of transmitting force, the pressure is high and the flow rate is large, which can provide a large torque.
Round pipe bender, thickened design, smooth edge grinding, and connection with the bend mouth.
Steel bar bending machine, dies are cast with ductile iron, high strength, good toughness and plasticity, long-term use without deformation and cracking, higher strength than ordinary gray cast iron, not easy to break.
