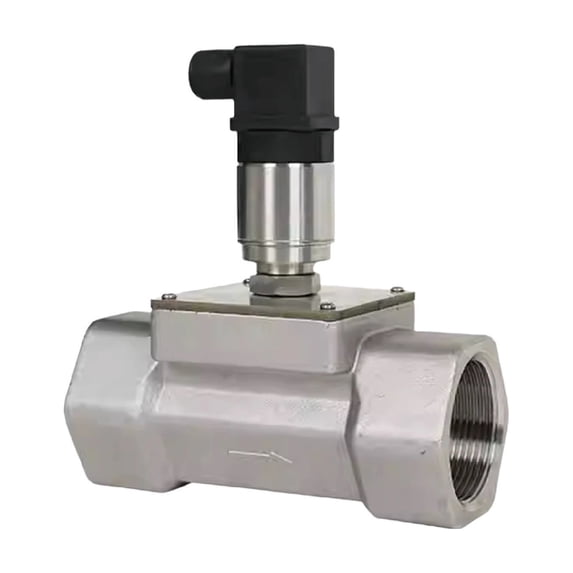

Stainless Steel Turbine Flow Meter, 4-20mA Transmitter, Pulse Output Sensor, Water dieselfuelfuelfuelfuelfuel Methanol Gasoline Liquid Flow Meter ,Good Performance

1.Note

[Power Supply]The flowmeter is powered by a default 12-24VDC power supply.

[Output]This product supports pulse signal, 4-20mA signal, and RS485 signal output. For customization, please contact us.

[Connection]The default connection method is internal thread with a pressure rating of 0.8 MPa. Higher pressure ratings can be customized. For external threads, flanges, or clamp connections, please contact us.

[Temperature Resistance]The default temperature resistance is -10 to 60°C. High-temperature models resistant to up to 150°C can be customized.

[Material]The default material is stainless steel

2.Parameters

Specification

Details

Measurement Medium:Water, urea, dieselfuelfuelfuelfuelfuel, light corrosive liquids

Nominal Diameter:

DN25-DN50

Accuracy:±0.5%

Nominal Pressure:0.8MPa

Medium Temperature:-10°C to 60°C

Ambient Conditions:Temperature: -10°C to 60°C

Power Supply:12-24VDC

Output Signal:Three-wire pulse, Two-wire 4-20mA, Four-wire RS485

Material:304 Stainless Steel, Aluminum Alloy

Connection Type:Internal thread ,External threads, Flanges, Clamp

3.Features

Multiple Output Options:Supports three-wire pulse, two-wire 4-20mA, and four-wire RS485 signals to suit various system requirements.

High Durability:Constructed from 304 stainless steel and aluminum alloy for excellent corrosion resistance and long service life.

Precision Engineering:Features a precisely machined impeller for accurate flow measurement without welding errors.

Easy Installation:Internal thread connection ensures quick and straightforward installation.

4.Applications

Industrial Liquids: for measuring dieselfuelfuelfuelfuelfuel, methanol, and light chemicals.

Beverage Production: Accurate flow monitoring for soft drinks, juices, and other beverages.

Agricultural Irrigation: Ensures precise measurement for water usage in irrigation systems.

Medical and Pharmaceutical: Used in liquid chemicals and pharmaceutical manufacturing.

5.FAQs

Q1:What output signals does the turbine flow meter support?

A1:It supports three-wire pulse, two-wire 4-20mA, and four-wire RS485 output signals.

Q2:What is the power supply requirement?

A2:The turbine flow meter operates with a 24VDC power supply.

Q3:Can it measure corrosive liquids?

A3:Yes, it is suitable for light corrosive liquids, such as urea and certain chemicals.
