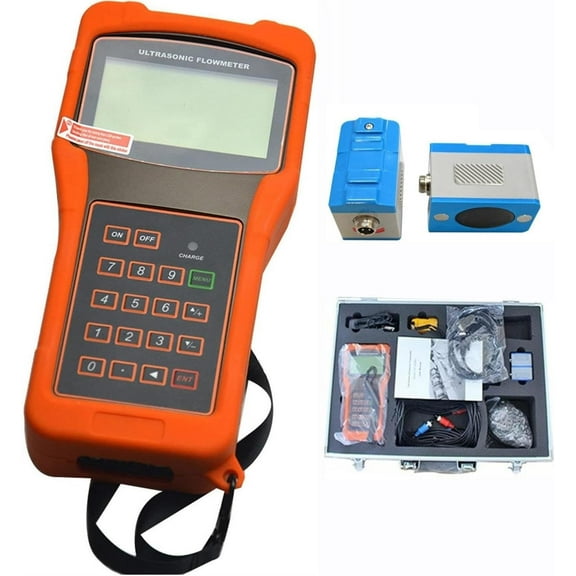

TDS-100H Portable Handheld Ultrasonic Flow Meter With Clamp On Sensor M2(DN50-700mm) Water Flowmeter With Clamp-on Transducers 100-240V ,Good Performance

TDS-100H Portable Handheld Ultrasonic Flow Meter With Clamp On Sensor M2(DN50-700mm) Water Flowmeter With Clamp-on Transducers 100-240V

Specifications:

Linearity 0.5%

Repeatability 0.2%

Accuracy ±1% of reading at rates>0.6 ft/s. ±0.5% with onsite calibration

Response Time 0999 seconds, userconfigurable

Velocity ±0.03 ±105 ft/s (±0.01 ±30 m/s), bidirectional

Pipe Size 15mm 6,000mm

Rate Units Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Gallon, Oil Barrel, USA Liquid Barrel, Liquid Barrel, Million USA Gallons. User configurable.

Totaliser 7digit totals for net, positive and negative flow

Liquid Types Virtually all liquids

Security Setup lockout. Access code needed for unlocking

Display 4x16 English letters

Communication Interface RS232C, baudrate: from 75 to 115,200 bps.

Transducers Model M1 for standard, other 3 models for optional

Transducer Cable Standard 10m, optional 2x1,500 (500m)

Power Supply 3 AAA NiH builtin batteries. When fully charged it will last over 10 hours of operation.100V240VAC for the charger

Data Logger Builtin data logger can store over 2,000 lines of data

Manual Totalizer 7digit presskeytogo totalizer for calibration

Housing Material ABS. Aluminum alloy protective case

Case Size 3.9x2.6x0.8 (100mmx66mmx20mm)

Handset Weight 1.2 lbs (514g) with batteries

Package List:

TDS-100H Portable Handheld Ultrasonic Flow Meter x 1Set
