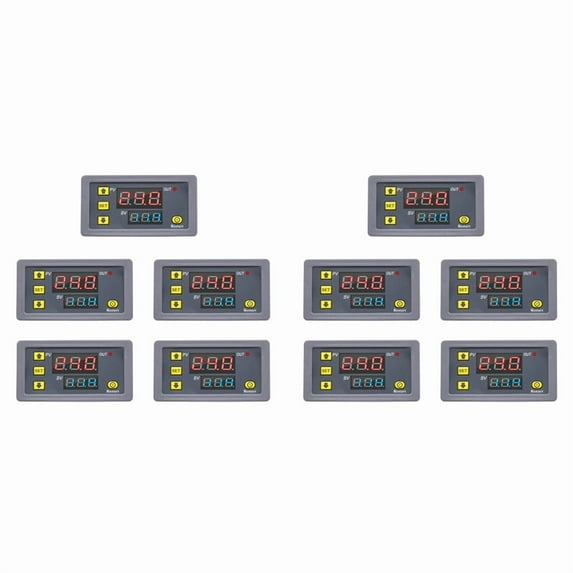

10X Digital Time Delay Relay LED Display Cycle Timer Control Switch Adjustable Timing Relay Time Delay Switch DC12V,10 x Dual Display Delay Relay,Grey

P0--0:T1 Timing mode is second.
P0-1: T1 timing mode is minutes.
P0--2:T1 Timing Time mode is hour.
P1--0:Delay T1 time,relay pull(T1 timer)
P1--1:Relay release after T1 time delay (T1 timer)
P1--2:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timing),then it is finished.
P1--3:Relay release after T1 time delay(T1 timer),then delay T2 time,relay pull(T2 timing),then it is finished.
P1--4:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timer),cycling.
P1--5: Relay release after T1 time delay(T1 timer),then delay T2 time,relay pull(T2 timer),cycling.
Specifications:
Timing range: 0-999s,0-999m,0-999h
Relay: 20A
Working current: 10A(maximum)
Power: 1500W (maximum)
Size: 79 x 26 x 43mm/2.99inch x 1.02inch x 1.69inch
Hole size: 72 x 40mm/2.83inch x 1.57inch
Theory: Time Relay
Contact Load: Low Power
Model Number: Digital Time Delay Relay
Usage: General Purpose
Voltage: DC12V
color:Grey
Material:plastic

Package Contents:
10 x Dual Display Delay Relay

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
