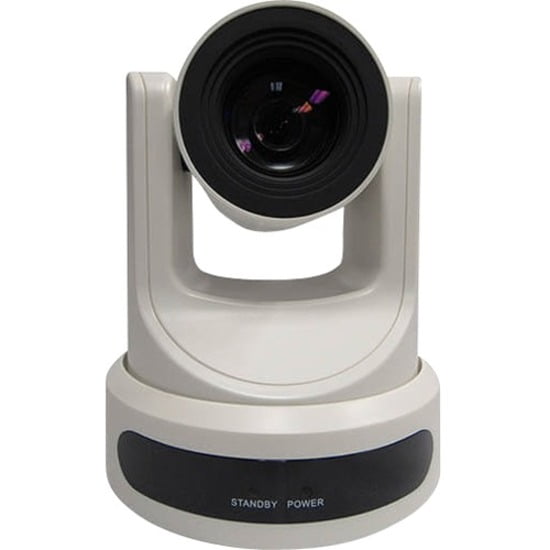

PTZOptics PT12X-USB-WH-G2 Video Conferencing Camera, 2.1 Megapixel, 60 fps, White, USB 3.0

(No ratings yet)

Key item features

Video CMOS Sensor

1/2.7" CMOS, 2.12 Mega Pixels
Frame Rate

1080i/60 & 50, 1080p/60 & 50
1080p/30 & 25, 720p/60, 50, 30 & 25
Lens

12x, F3.5mm-42.3mm, F1.8-F2.8
Lens Zoom

12x
Field of View

72.5 deg.
Min Lux

0.5 Lux at F1.8, AGC ON
Shutter Speed

1/30s - 1/10000s
SNR

=55dB
Vertical Flip & Mirror

Supported
Horizontal Angle of View

6.9 deg. (tele) to 72.5 deg. (wide)
Vertical Angle of View

3.9 deg. (tele) to 44.8 deg.(wide)
Working Environment

Indoor
Pan Movement

+/-170 deg.
Tilt Rotation

Up: 90 deg., Down: 30 deg.
Presets

10 IR Presets (Up to 255 via RS-232)
Video Output Interface

USB 3.0, HDMI, IP Streaming, CVBS
Network Interface

RJ45
Audio Interface

Line In, 3.5mm (IP Stream Only)
Communication Interface

RS-232, RS485
Baud Rate

2400/4800/9600 bits
Power Supply Interface

JEITA type Power Adapter (DC IN 12V)
USB Interface

USB 3.0
USB 2.0 Interface

Future Use
Power Supply

12W (Max)
Input Voltage

12V DC (10.8 - 13.0V DC)
Dimensions (W x H x D)

5.56 x 6.88 x 5.88" (14.12 x 17.48 x 14.94cm)
With Tilt up: 5.56 x 8 x 5.88" (14.12 x 20.32 x 14.94cm)
Weight

3.05lbs (1.38kg)

Specs

Maximum video resolution
1920 x 1080, 1080p
Frame rate
60 FPS
Brand
PTZOptics
Electronics feature
Digital Zoom
Connector type
USB 3.0
Number of megapixels
2.1 MP

Current price is $1,699.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

The PTZOptics 12X-USB is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With support for USB 3.0, HDMI, and IP streaming (H.264, H.265,& MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording,or video conferencing applications.

Video CMOS Sensor

1/2.7" CMOS, 2.12 Mega Pixels
Frame Rate

1080i/60 & 50, 1080p/60 & 50
1080p/30 & 25, 720p/60, 50, 30 & 25
Lens

12x, F3.5mm-42.3mm, F1.8-F2.8
Lens Zoom

12x
Field of View

72.5 deg.
Min Lux

0.5 Lux at F1.8, AGC ON
Shutter Speed

1/30s - 1/10000s
SNR

=55dB
Vertical Flip & Mirror

Supported
Horizontal Angle of View

6.9 deg. (tele) to 72.5 deg. (wide)
Vertical Angle of View

3.9 deg. (tele) to 44.8 deg.(wide)
Working Environment

Indoor
Pan Movement

+/-170 deg.
Tilt Rotation

Up: 90 deg., Down: 30 deg.
Presets

10 IR Presets (Up to 255 via RS-232)
Video Output Interface

USB 3.0, HDMI, IP Streaming, CVBS
Network Interface

RJ45
Audio Interface

Line In, 3.5mm (IP Stream Only)
Communication Interface

RS-232, RS485
Baud Rate

2400/4800/9600 bits
Power Supply Interface

JEITA type Power Adapter (DC IN 12V)
USB Interface

USB 3.0
USB 2.0 Interface

Future Use
Power Supply

12W (Max)
Input Voltage

12V DC (10.8 - 13.0V DC)
Dimensions (W x H x D)

5.56 x 6.88 x 5.88" (14.12 x 17.48 x 14.94cm)
With Tilt up: 5.56 x 8 x 5.88" (14.12 x 20.32 x 14.94cm)
Weight

3.05lbs (1.38kg)
